Center Differential Carrier: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the snap ring, and pull out the pinion shaft from center differential assembly.

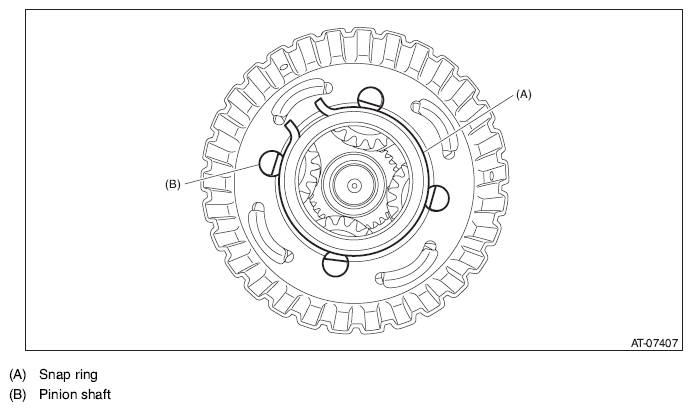

    Fig 1: Identifying Snap Ring And Pinion Shaft
    G10293289Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the pinion gear and washers from center differential assembly.

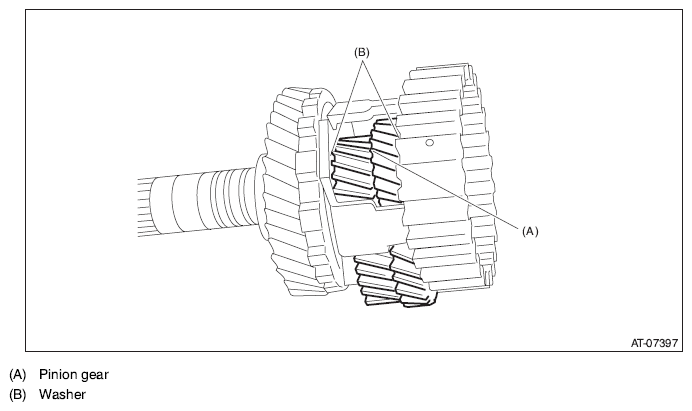

    Fig 2: Identifying Pinion Gear And Washers
    G10293290Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the intermediate shaft and thrust bearing.
