Steering Gearbox

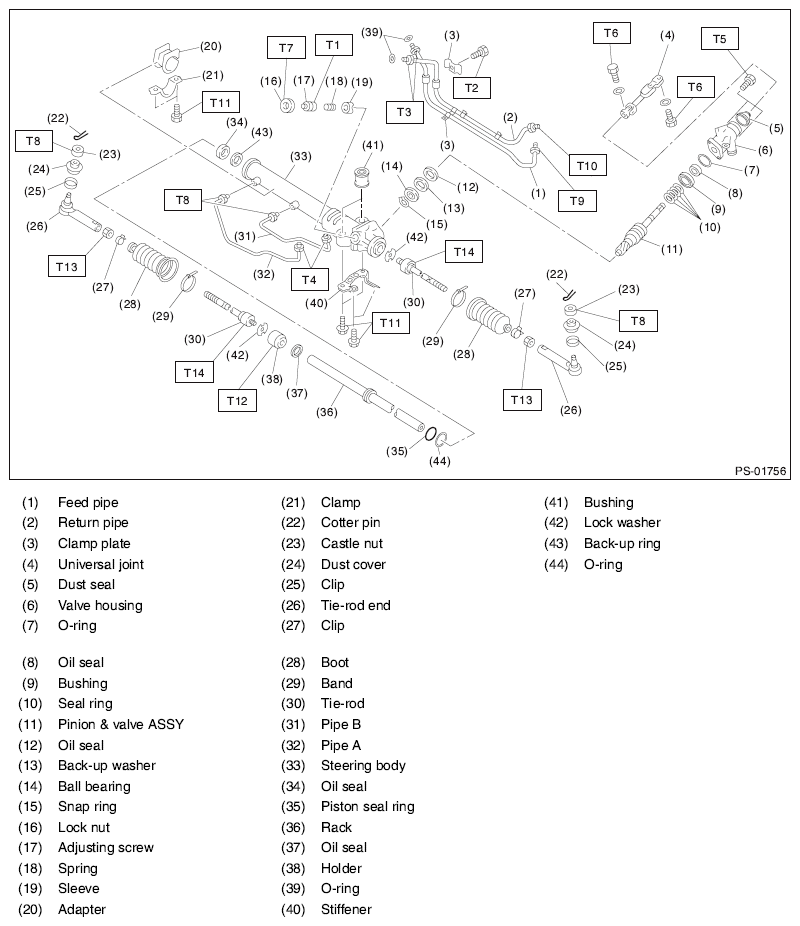

Fig 1: Exploded View Of Steering Gearbox (Hydraulic Type)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: Tighten to 5.9 (0.6, 4.4), and loosen by 5 degrees.

T2: 9 (0.9, 6.6)

T3: 15 (1.5, 11.1)

T4: 17 (1.7, 12.5)

T5: 20 (2.0, 14.8)

T6: 24 (2.4, 17.7)

T7: 25 (2.5, 18.4)

T8: 27 (2.8, 19.9)

T9: 37 (3.8, 27.3)

T10: 29 (3.0, 21.4)

T11: 60 (6.1, 44.3)

T12: 70 (7.1, 51.6)

T13: 85 (8.7, 62.7)

T14: 93 (9.5, 68.6)

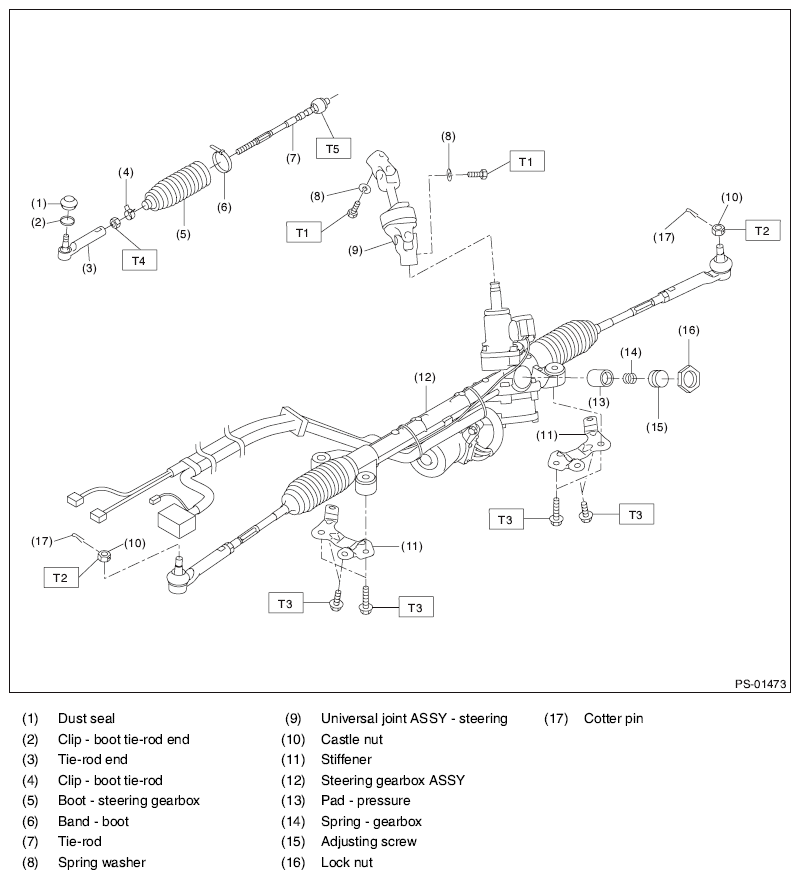

Fig 2: Exploded View Of Steering Gearbox (Electric Type)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 24 (2.4, 17.7)

T2: 27 (2.8, 19.9)

73: 60 (6.1, 44.3)

T4: 85 (8.7, 62.7)

T5: 90 (9.2, 66.4)
