Side Airbag Module

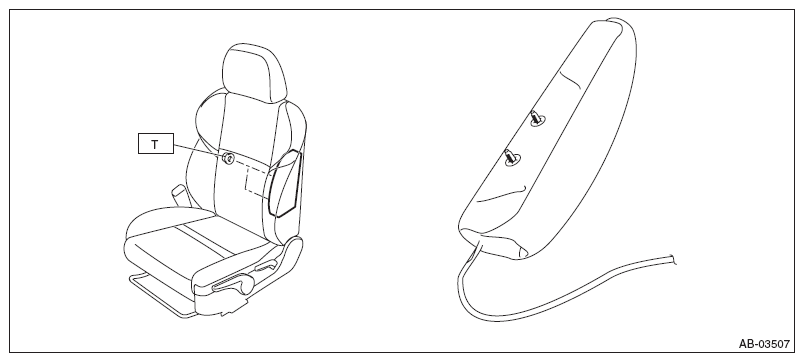

Fig 1: Identifying Side Airbag Module With Torque Specification
G10270405Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 6 (0.6, 4.4)
