Home >> Subaru >> 2016 >> WRX Base >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Air Bag System >> General Description >> Components With Torque Specifications >> Notes

Components With Torque Specifications: Notes

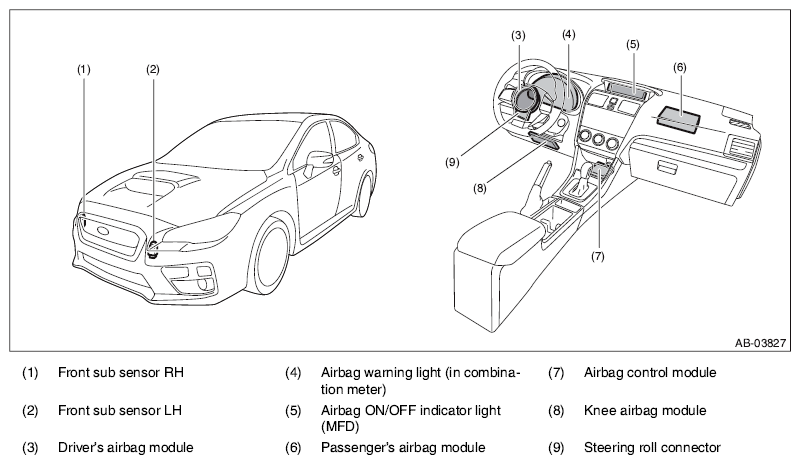

Fig 1: Identifying Air Bag System Components (1 Of 2)
G10298262Courtesy of SUBARU OF AMERICA, INC.

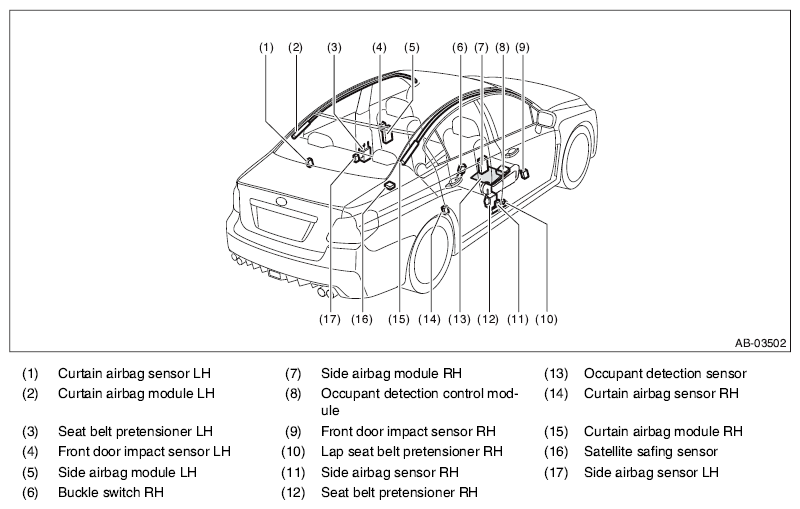

Fig 2: Identifying Air Bag System Components (2 Of 2)
G10298263Courtesy of SUBARU OF AMERICA, INC.
