Curtain Airbag Module: Removal

CAUTION: Refer to "CAUTION" of "General Description" before handling the airbag system components. < Ref. to CAUTION , General Description. >

Turn the ignition switch to OFF.
Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. < Ref. to BATTERY , NOTE, Note. >
NOTE:
- For models other than STI model, disconnect the ground terminal from battery sensor.
- On CVT models, shift the select lever into "D" before disconnecting the battery ground cable.
- For model with the power seat, move the seat to the front-most position before removing the battery ground terminal.
Remove the trim panel - roof assembly. < Ref. to REMOVAL , Roof Trim. >
Remove the curtain airbag module.
CAUTION:
- Be careful not to damage the curtain airbag module during removal.
- Never open the curtain airbag module before activation. Never reuse the deployed curtain airbag module.
- Remove the modules in order starting from the vehicle front.

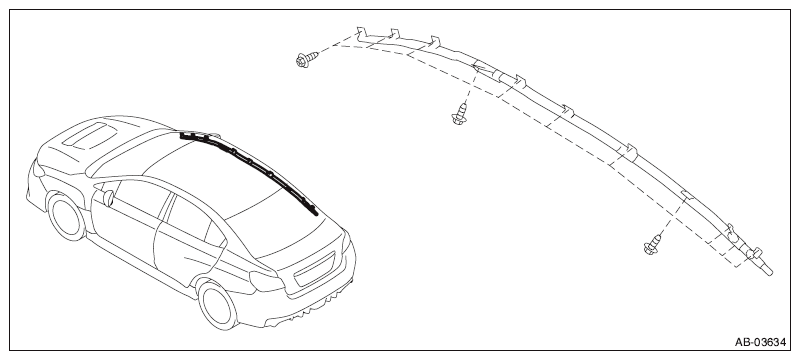

1. Remove all the bolts and clips, and remove the curtain airbag module.

  Fig 1: Removing Bolts And Clips
  Courtesy of SUBARU OF AMERICA, INC.

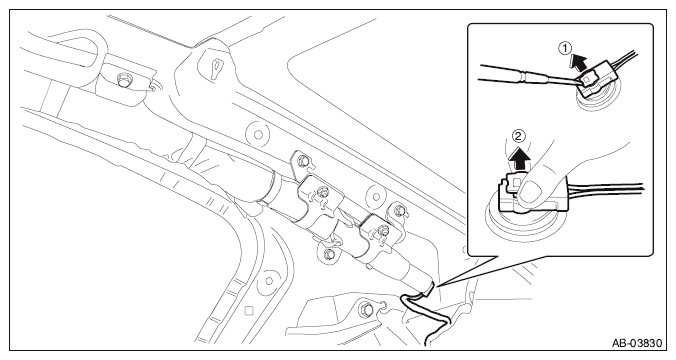

2. Disconnect the curtain airbag module connector. < Ref. to DRIVER'S AIRBAG MODULE , CURTAIN AIRBAG MODULE & PRETENSIONER, PROCEDURE, Airbag Connector. >

  Fig 2: Disconnecting Curtain Airbag Module Connector
  Courtesy of SUBARU OF AMERICA, INC.
