Passenger's Airbag Module

  1. Turn the ignition switch to OFF.
  2. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. < Ref. to BATTERY , NOTE, Note. >
    NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
  3. Remove the cover - shift lever, the panel center LWR RH, and the console box assembly. < Ref. to REMOVAL , Console Box. >
  4. Disconnect the passenger's airbag module connector.

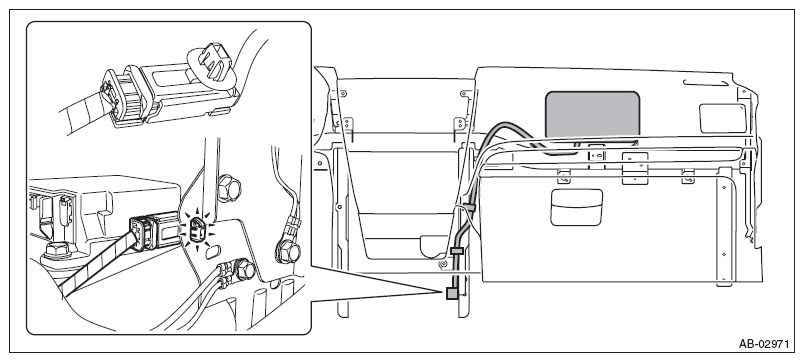

    Fig 1: Disconnecting Passenger Airbag Module Connector
    G10270508Courtesy of SUBARU OF AMERICA, INC.
  5. Short the terminal to the alligator clip furnished as airbag deployment tool.
    CAUTION: The airbag deployment tool should be kept shorted on the terminals until just before activation of airbag module.

    Preparation tool:

    ST: AIRBAG DEPLOYMENT TOOL (98299PA030)

  6. Connect airbag deployment tool (A) and test harness adapter AM (B).

    Preparation tool:

    ST: TEST HARNESS ADAPTER AM (98299FJ000)

    Fig 2: Connecting Airbag Deployment Tool And Test Harness Adapter AM
    G10270509Courtesy of SUBARU OF AMERICA, INC.
  7. Connect test harness adapter AM to airbag connector.

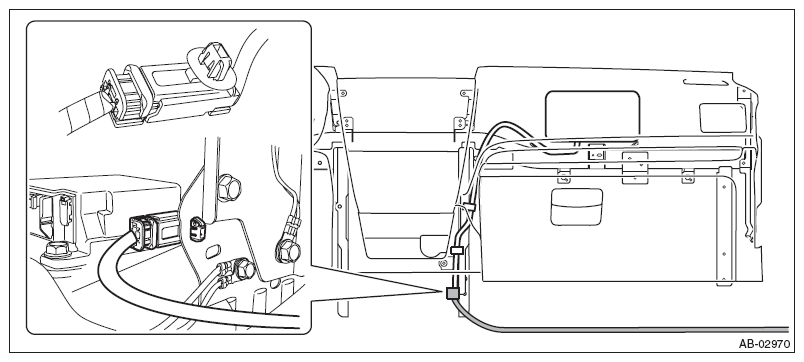

    Fig 3: Connecting Test Harness Adapter AM To Airbag Connector
    G10270510Courtesy of SUBARU OF AMERICA, INC.
  8. Make sure there is no one inside the vehicle.
  9. Extend the wiring of airbag deployment tool to the limit, and close all the windows and sunroof completely.

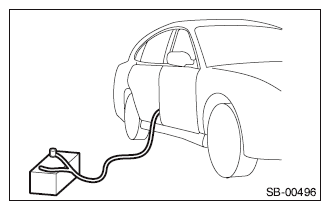

    Fig 4: Identifying Airbag Deployment Tool
    G10298363Courtesy of SUBARU OF AMERICA, INC.
  10. Move the battery at least 5 m (16 ft) from the vehicle, and confirm safety in the area.
  11. Connect the airbag deployment tool alligator clip to the battery negative (-) terminal.
  12. Connect the other cable of airbag deployment tool to the battery positive (+) terminal, and activate the airbag module.
    CAUTION:
    • After activation, the airbag module will be extremely hot. Let it cool down for at least 40 minutes in an area with no one around.
    • Do not expose the activated airbag module to water.

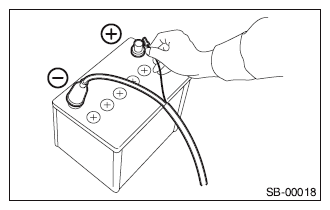

    Fig 5: Connecting Other Cable Of Airbag Deployment Tool To Battery Positive (+) Terminal
    G10298376Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the passenger's airbag module. < Ref. to REMOVAL , Passenger's Airbag Module. >
  14. Place the activated airbag module in a sealed vinyl bag, then discard.
    Fig 6: Identifying Activated Airbag Module In Sealed Vinyl Bag
    G10270513Courtesy of SUBARU OF AMERICA, INC.
