Section 14 (Diagnostic Trouble Code (DTC) Detecting Criteria)
>>
Diagnostic Trouble Code (DTC) Detecting Criteria
>>
DTC P0606 Control Module Processor
>>
Component Description
Component Description
WARNING:
This page is about a different variant/trim than selected.

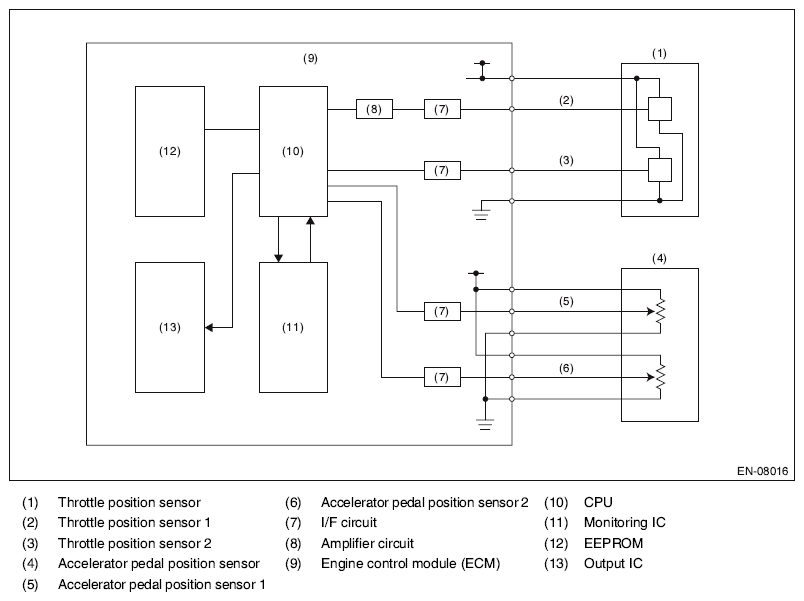

Fig 1: Control Module Processor Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
