Inhibitor Switch: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Shift the select lever to "N" range.
  2. Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Note. >
  3. Lift up the vehicle.
  4. Remove the snap pin and washer from the shifter arm.

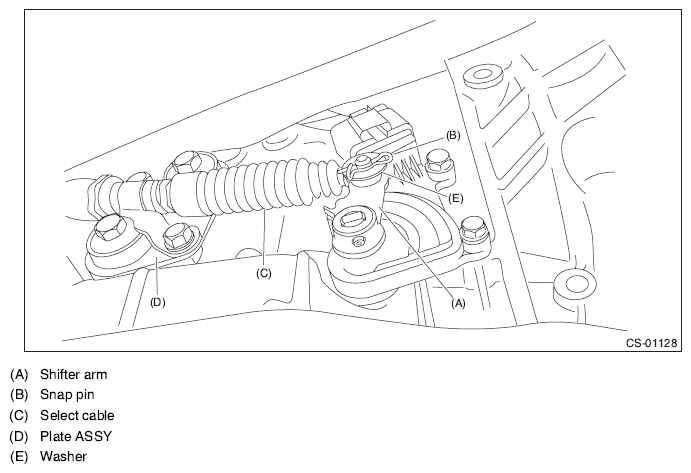

    Fig 1: Identifying Shifter Arm, Snap Pin, Select Cable, Plate ASSY And Washer
    G10293196Courtesy of SUBARU OF AMERICA, INC.
  5. Using the ST, remove the spring pin and shifter arm.

    ST 398791600 REMOVER

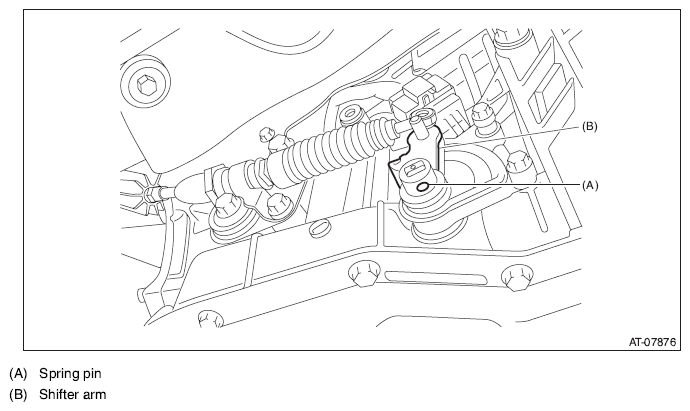

    Fig 2: Identifying Spring Pin And Shifter Arm
    G10293197Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the inhibitor harness connector from inhibitor switch.
  7. Remove the two inhibitor switch securing bolts.
    Fig 3: Locating Inhibitor Switch Securing Bolts
    G07913384Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the inhibitor switch.
