Mt Gear Shift Lever & Mt Gear Shift Cable & Mt Gear Select Cable

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

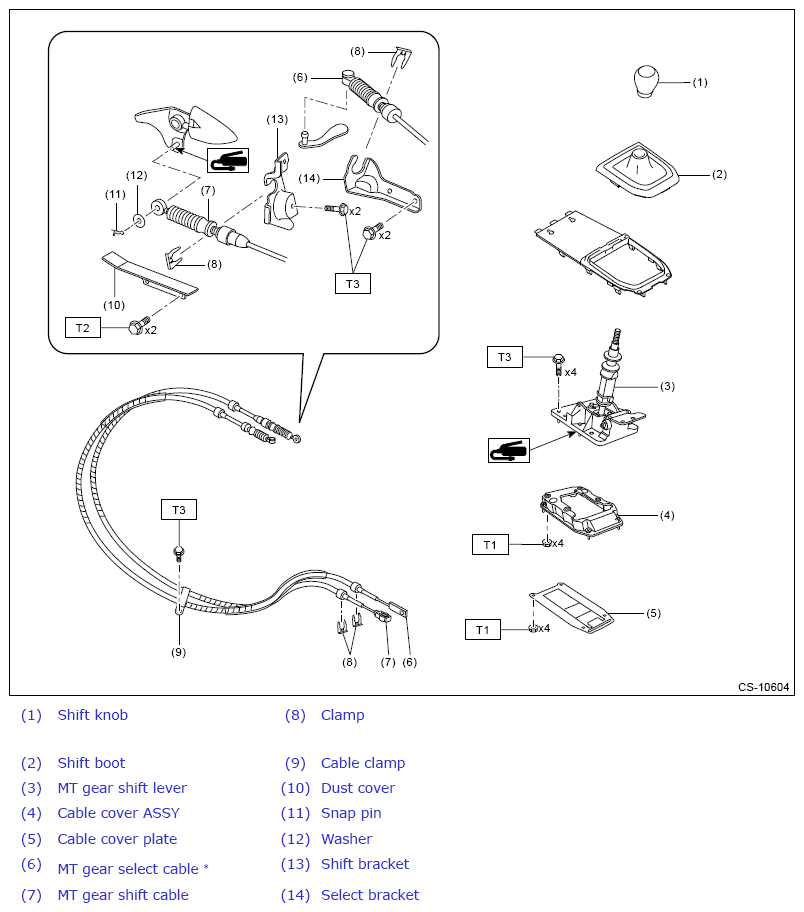

Fig 1: MT Gear Shift Lever, Shift Cable And Select Cable Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 15 (1.5, 11.1)

T3: 18 (1.8, 13.3)

*: Always use new MT gear select cable if the cable is removed from the transmission body.
