Rocker Cover

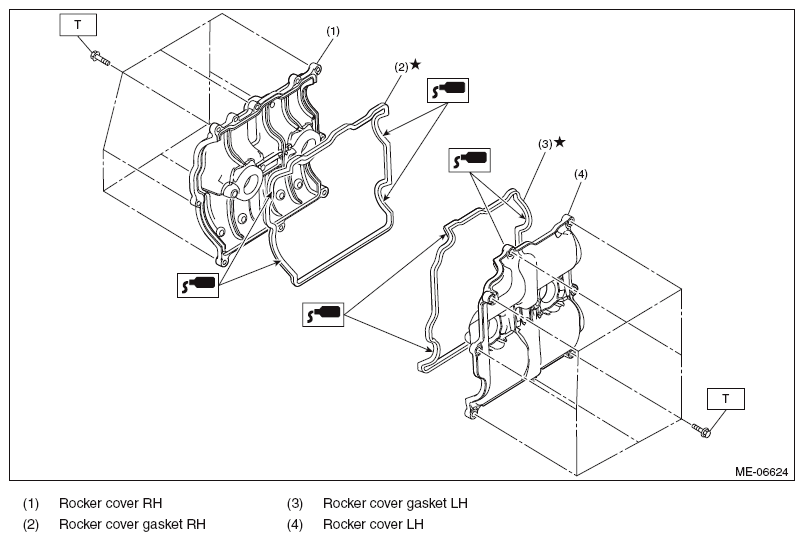

Fig 1: Exploded View Of Rocker Cover With Torque Specification
G10291648Courtesy of SUBARU OF AMERICA, INC.

T: < Ref. to  INSTALLATION  , Rocker Cover. >
