Cylinder Block 2

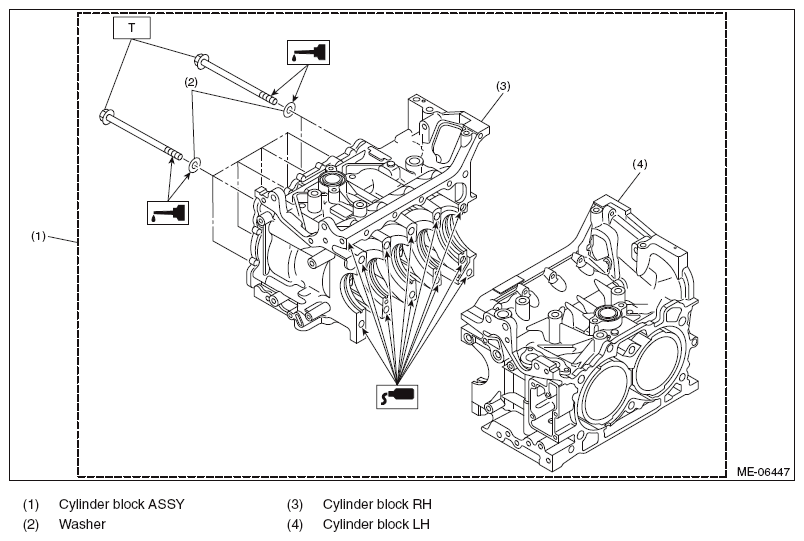

Fig 1: Exploded View Of Cylinder Block 2 With Torque Specification

G10291653

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: < Ref. to INSTALLATION , Cylinder Block. >
