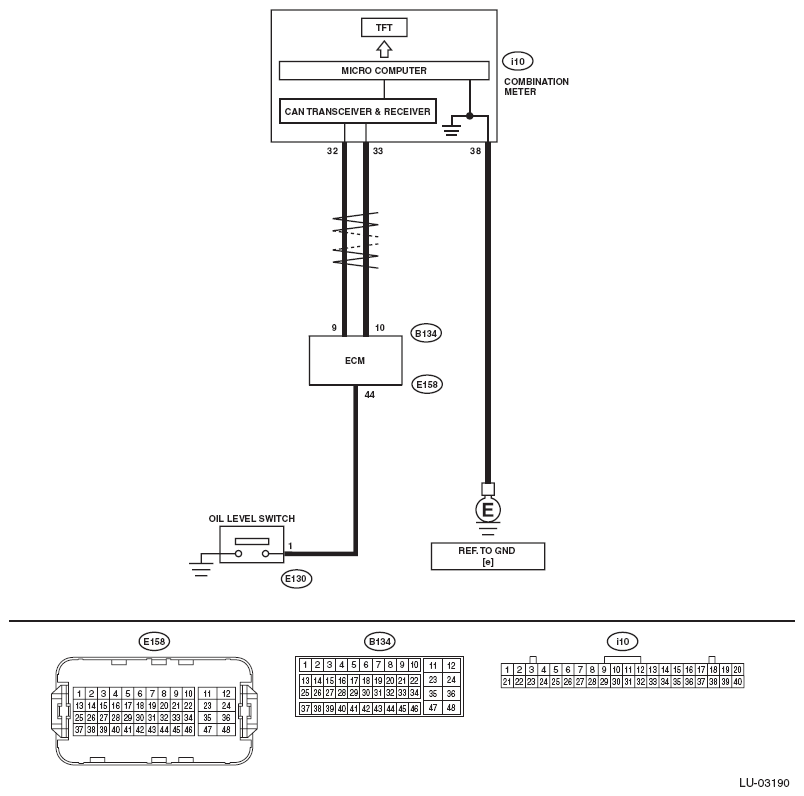

Oil Level Switch: Wiring Diagram
- Engine electrical system Ref. to the appropriate SYSTEM WIRING diagram article, Engine Electrical System.
- CAN communication system Ref. to the appropriate SYSTEM WIRING diagram article, CAN Communication System. >
Courtesy of SUBARU OF AMERICA, INC.
