STI Model
CAUTION:
Do not allow brake fluid to come in contact with the painted surface of the vehicle body. If it does, wash off with water and wipe away completely.
- Lift up the vehicle, and then remove the rear wheels.
- Remove the pad - disc brake rear. < Ref. to EXCEPT FOR STI MODEL (ELECTRONIC PARKING BRAKE TYPE) , REMOVAL, Rear Brake Pad. >

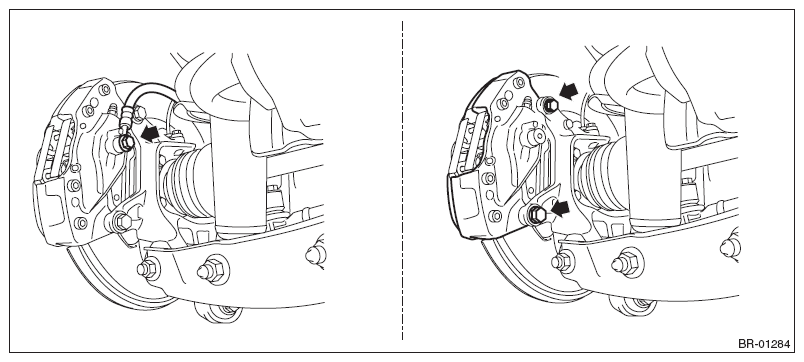

- Remove the mounting bolts, and then remove the disc brake assembly.CAUTION:
- Since the 17-inch (Brembo) caliper body is easily scratched and the paint may be stripped, protect it from being contacted with other parts or tools.
- Do not allow brake fluid to come in contact with the painted surface of the vehicle body. If it does, wash off with water and wipe away completely.
- Prepare a container to catch grease or oil, etc. If any grease or oil spills, wipe it off and clean immediately to prevent from penetrating into floor or flowing outside.
