Master Cylinder: Assembly

CAUTION: When replacing the reservoir tank, adhere the label to the position shown in the figure. (C0 model)

Label:

C0 model

Part No. 25080GA010

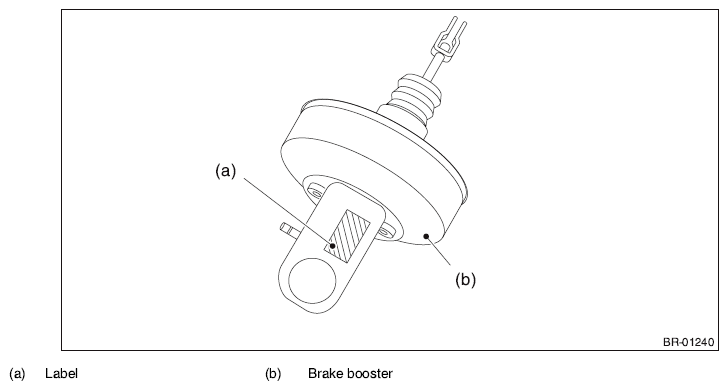

Fig 1: Identifying Brake Booster And Label

Courtesy of SUBARU OF AMERICA, INC.

Install the seal to the cylinder body assembly.
Install the reservoir tank.
CAUTION: Be careful not to tighten a vise excessively.
1. Place the master cylinder assembly between aluminum plates and fix it on a vise.
2. Drive the pin using a punch and a hammer to install the reservoir tank.
