Front Disc Brake

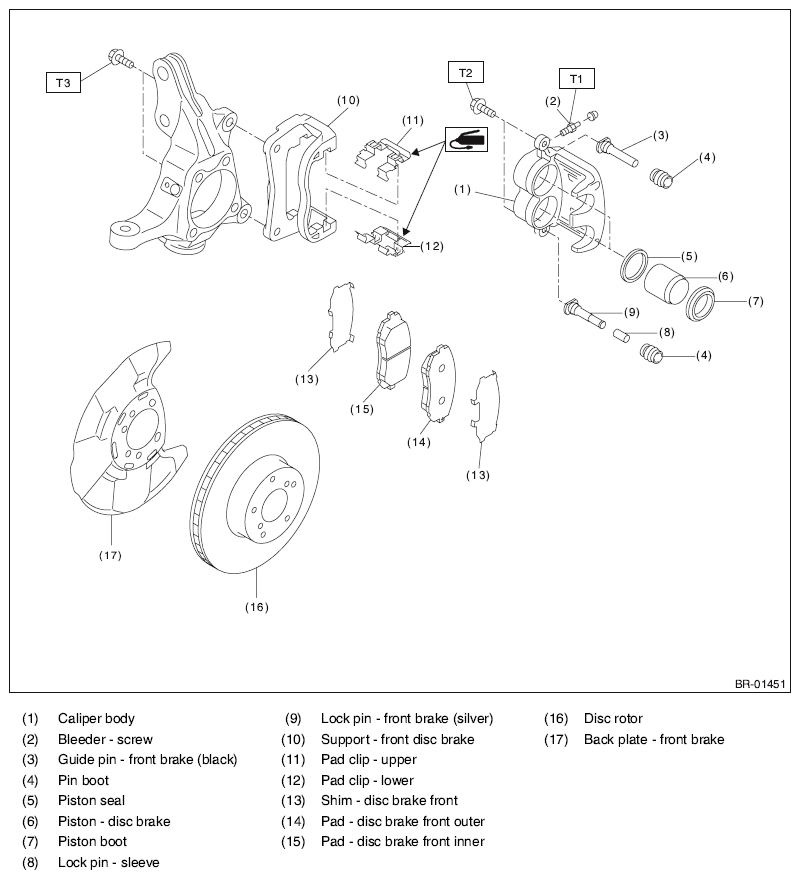

Fig 1: Exploded View Of Front Disc Brake - Except For STI Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8 (0.8, 5.9)

T2: 27 (2.8, 19.9)

T3: 80 (8.2, 59)

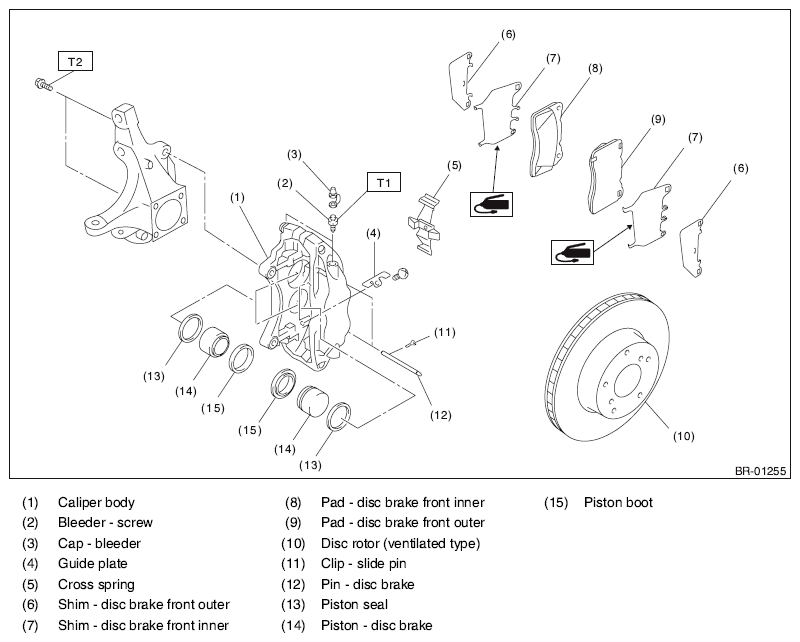

Fig 2: Exploded View Of Front Disc Brake - STI Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 20 (2.0, 14.8)

T2: 155 (15.8, 114.3)
