Brake Vacuum Pump

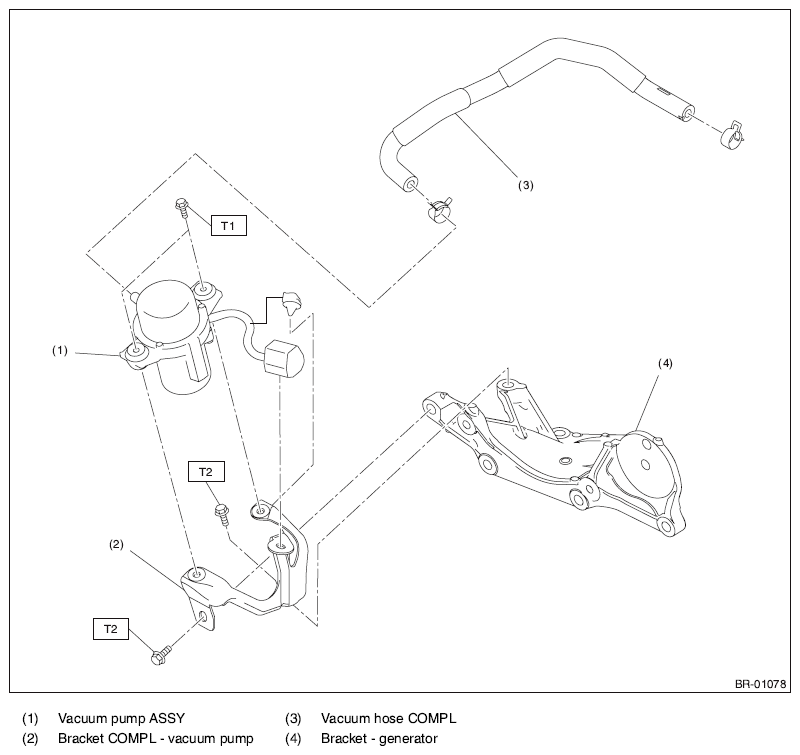

Fig 1: Identifying Brake Vacuum Pump Related Components With Torque Specification
G10297767Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 19 (1.9, 14.0)
