Brake Pedal

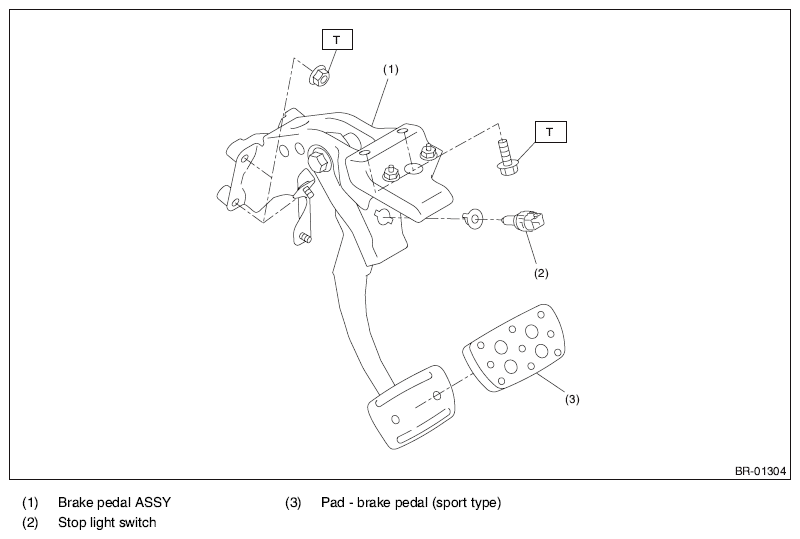

Fig 1: Identifying Brake Pedal Related Components With Torque Specification (AT Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 18 (1.8, 13.3)

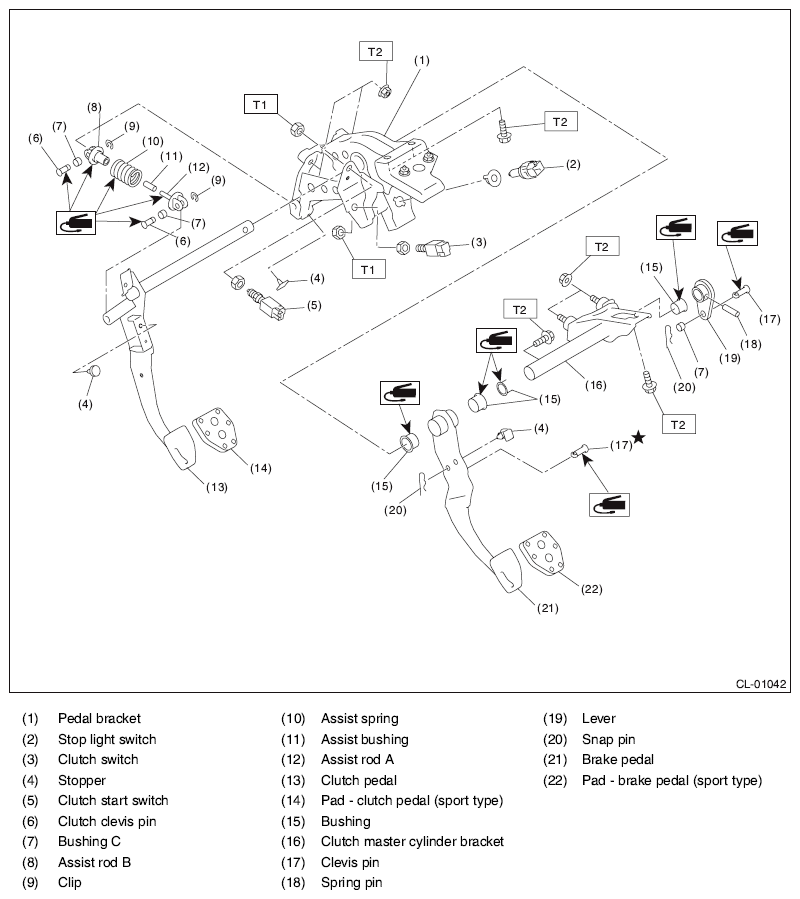

Fig 2: Identifying Brake Pedal Related Components With Torque Specification (MT Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8 (0.8, 5.9)

T2: 18 (1.8, 13.3)
