STI Model

  1. Lift up the vehicle, and then remove the front wheels.
  2. Remove the pad - disc brake front.
    1. Remove the clip - slide pin (a), and remove the pin - disc brake (b) and cross spring (c).
    2. While pushing back the piston with a wrench, remove the pad - disc brake front.

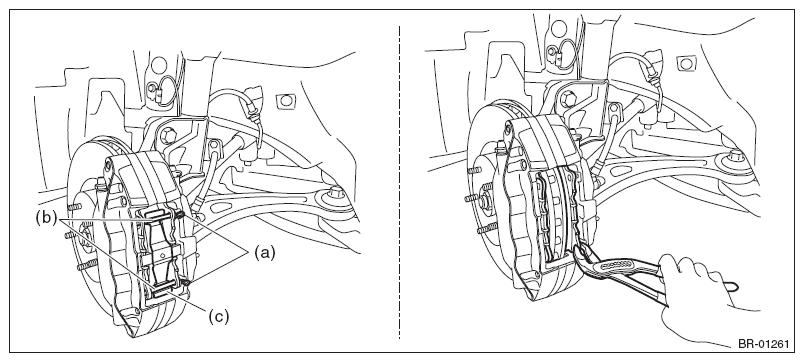

      Fig 1: Removing Pad - Disc Brake Front (STI Model)
      G10269945Courtesy of SUBARU OF AMERICA, INC.
