Sunroof Assembly: Disassembly

Remove the screw and remove the sunroof motor.

Fig 1: Locating Sunroof Motor Screws
Courtesy of SUBARU OF AMERICA, INC.
Remove the stopper rubber and pull out the sunshade assembly from the rail assembly - sunroof.

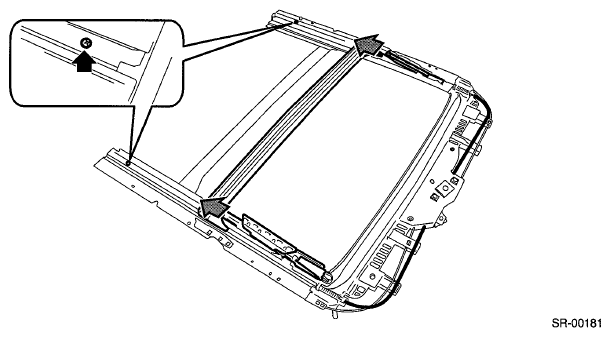

Fig 2: Pulling Out Sunshade Assembly From Sunroof Rail Assembly
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the claws and then remove the drain holder.

Fig 3: Identifying Drain Holder Claws
Courtesy of SUBARU OF AMERICA, INC.
Remove the screw and pull out the cable assembly from the rail assembly - sunroof.

Fig 4: Pulling Out Cable Assembly From Sunroof Rail Assembly
Courtesy of SUBARU OF AMERICA, INC.
