Deflector Assembly

  1. Install the deflector assembly - sunroof.
  2. After installation, measure the height from the roof panel when deflector assembly - sunroof is activated.

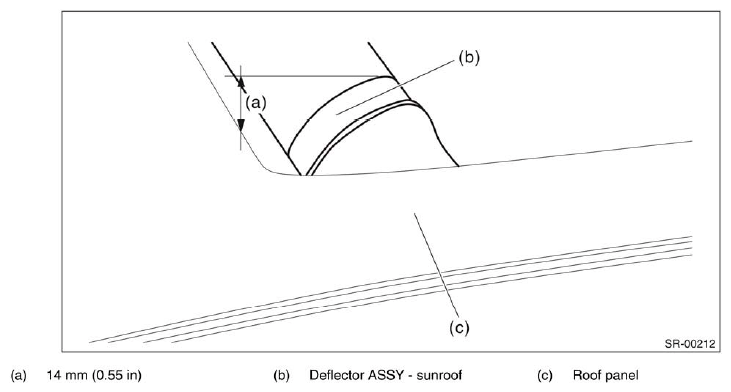

    Fig 1: Identifying Sunroof Deflector Assembly And Roof Panel
    G10299019Courtesy of SUBARU OF AMERICA, INC.
