Front Hood

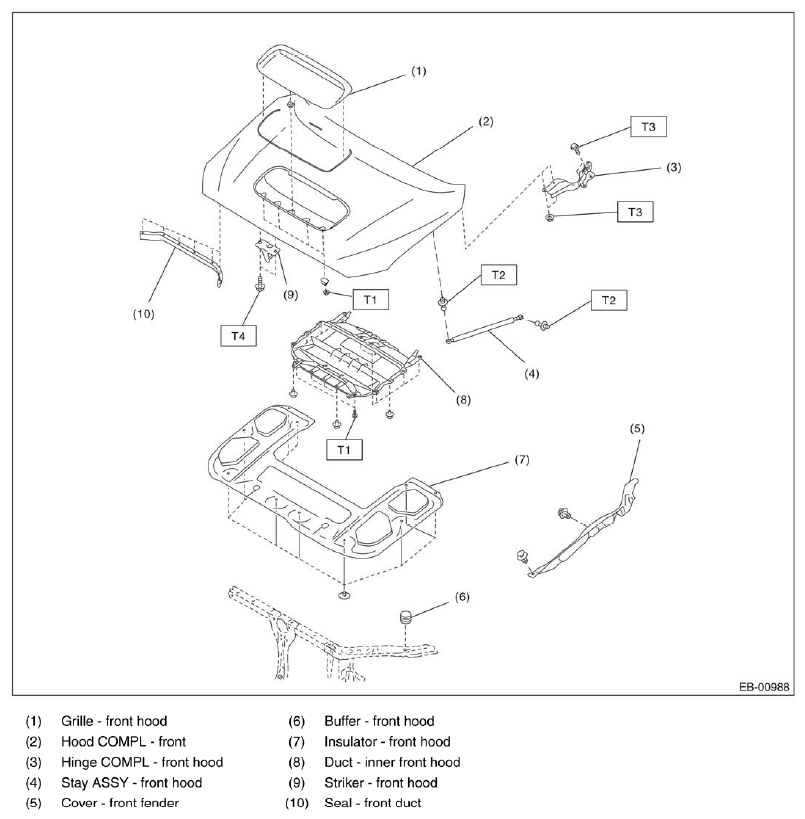

Fig 1: Exploded View Of Front Hood With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 4.5 (0.5, 3.3)

T2: 20 (2.0, 14.8)

T3: 25(2.5, 18.4)

T4: 33(3.4, 24.5)
