Trunk Opener Button: Removal

  1. Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note. >
    NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
  2. Remove the garnish - trunk. < Ref. to REMOVAL , Trunk Lid Garnish. >
  3. Release the locks at both ends of the trunk opener button by pushing them with a flat tip screwdriver.

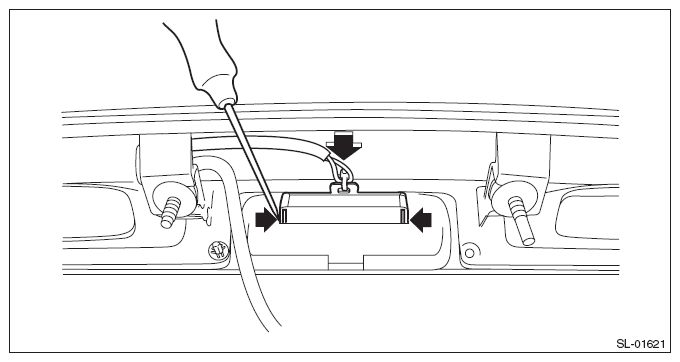

    Fig 1: Pushing Trunk Opener Button Locks Using Flat Tip Screwdriver
    G10271086Courtesy of SUBARU OF AMERICA, INC.
