Keyless Buzzer: Removal

  1. Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note. >
    NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
  2. Remove the air cleaner case.
    • STI model: < Ref. to REMOVAL , Air Cleaner Case. >
    • Except for STI model: < Ref. to REMOVAL , Air Cleaner Case. >
  3. Lift up the vehicle.
  4. Remove the screw and clips, and turn over the mud guard - front on the right side.

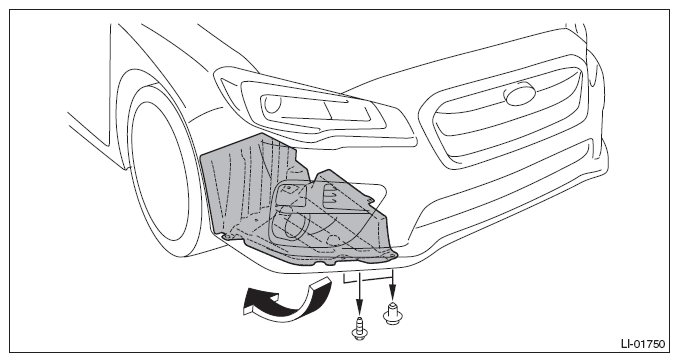

    Fig 1: Turning Over Mud Guard - Front
    G10270746Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the keyless buzzer.
    1. Disconnect the connector.
    2. Remove the clip and detach the keyless buzzer.

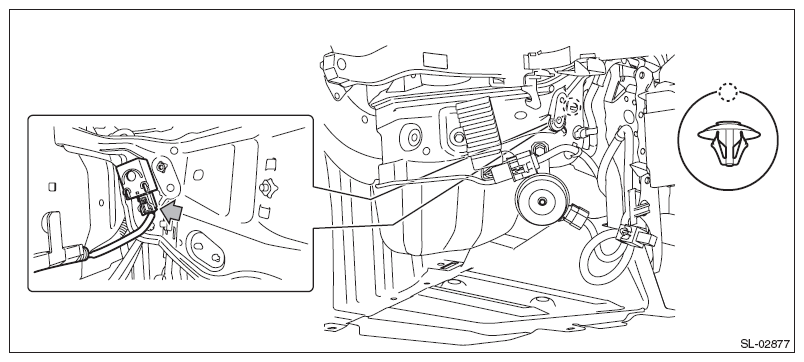

      Fig 2: Locating Keyless Buzzer Connector
      G10271062Courtesy of SUBARU OF AMERICA, INC.
