Accessory Relay (Push Button Start): Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". < Ref. to CAUTION , General Description. >
  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. < Ref. to BATTERY , NOTE, Note. >
    NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
  2. Remove the cover assembly - instrument panel LWR driver. < Ref. to REMOVAL , Instrument Panel Lower Cover. >
  3. Remove the knee airbag module. < Ref. to REMOVAL , Knee Airbag Module. >
  4. Release the lock and remove the fuse holder.
    Fig 1: Locating Fuse Holder
    G08315475Courtesy of SUBARU OF AMERICA, INC.

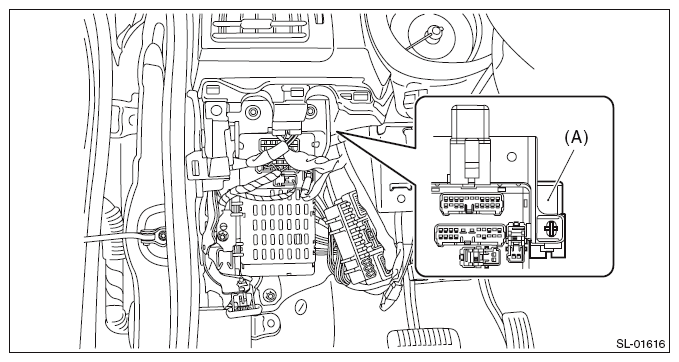

  5. Remove the accessory relay (push button start) (A) from the relay and fuse box.
    Fig 2: Identifying Accessory Relay (Push Button Start)
    G09484752Courtesy of SUBARU OF AMERICA, INC.
