Steering
>>
Power Steering
>>
Power Steering System
>>
General Description
>>
Components With Torque Specifications
>>
Electric Power Steering Control Module
Electric Power Steering Control Module

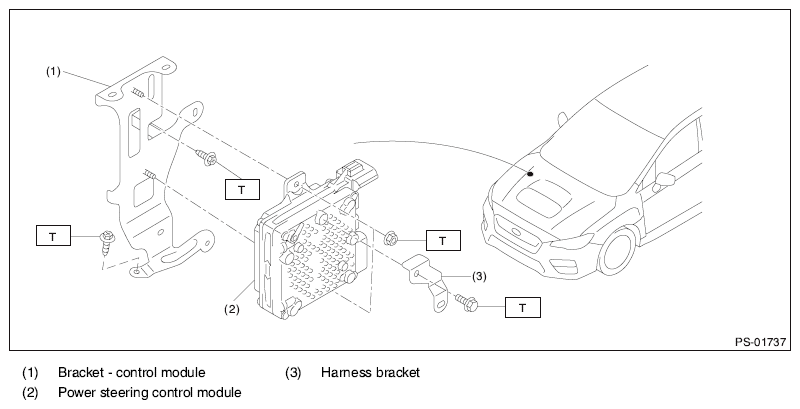

Fig 1: Exploded View Of Electric Power Steering Control Module
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
Courtesy of SUBARU OF AMERICA, INC.
