Control Module I/O Signal: Wiring Diagram

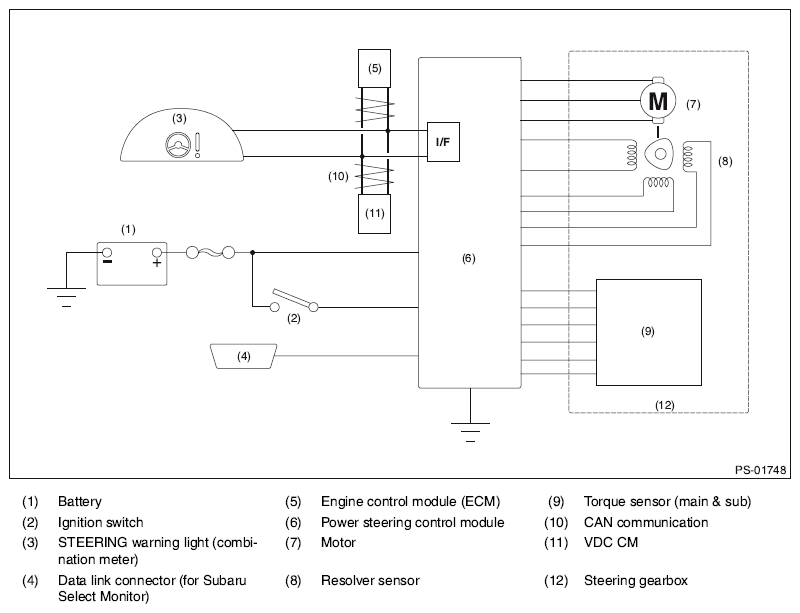

Fig 1: Power Steering Control Module Wiring Diagram

G10298116

Courtesy of SUBARU OF AMERICA, INC.
