Diagnostic Trouble Code (DTC) Detecting Criteria (H4DOTC) (WRX)
>>
Diagnostic Trouble Code (DTC) Detecting Criteria
>>
DTC P0458 EVAP System (CPC) Purge Control Valve "A" Circuit Low
>>
Component Description
Component Description

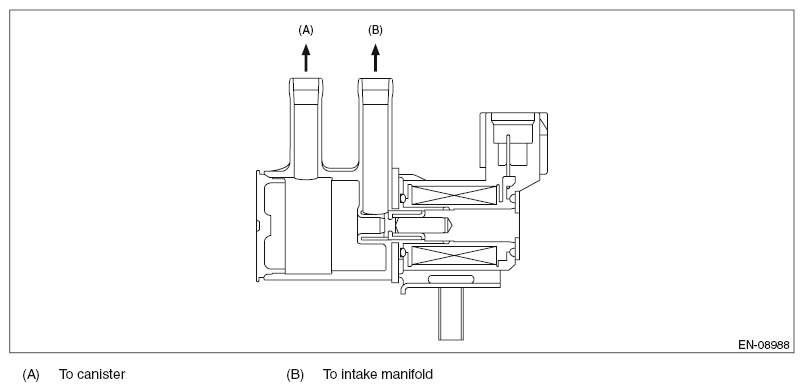

Fig 1: Identifying Evaporative Emission System Purge Control Valve Canister And Intake Manifold Air Flow Passage (Circuit Low)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
