Component Description

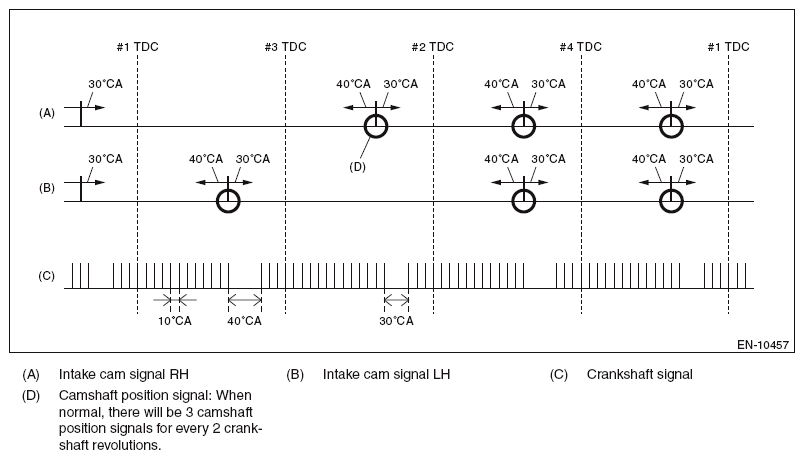

Fig 1: Identifying Intake Camshaft Signals And Crankshaft Signals Scale
G10292781Courtesy of SUBARU OF AMERICA, INC.
