PCV System 2

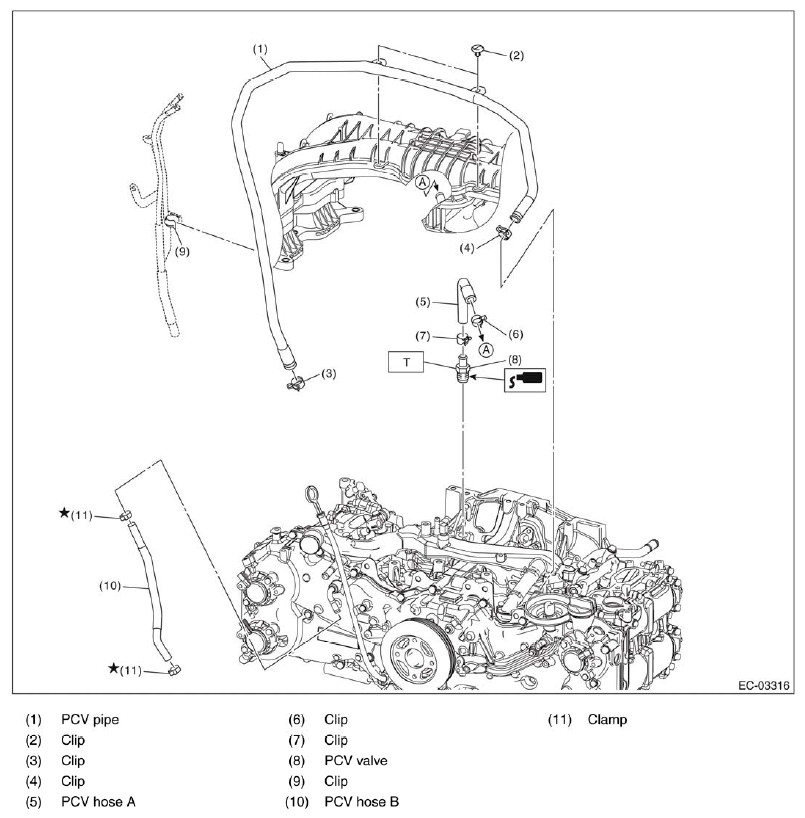

Fig 1: Identifying PCV System 2 Components With Torque Specification
G10291418Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 23(2.3, 17.0)
