Exhaust Gas RECIRCULATION Control Circuit Range/Performance

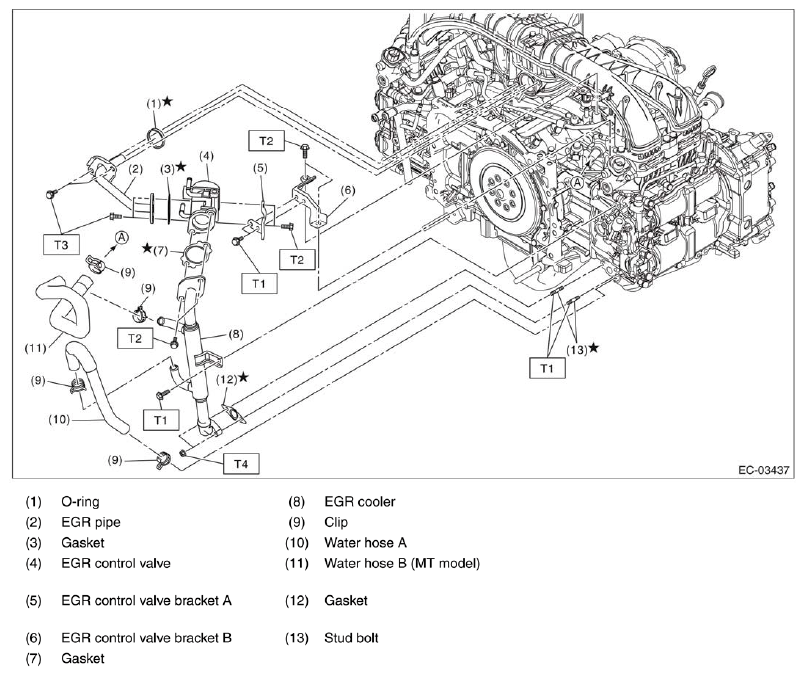

Fig 1: Identifying Exhaust Gas Recirculation Control Components With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 19 (1.9, 14.0)

T3: < Ref. to  INSTALLATION  , EGR Pipe. >

T4: < Ref. to  INSTALLATION  , EGR Cooler. >
