Collision/Avoidance
>>
Eyesight System (Diagnostics)
>>
Control Module I/O Signal
>>
System Block Diagram
System Block Diagram
Main signals used between stereo camera and relevant CM

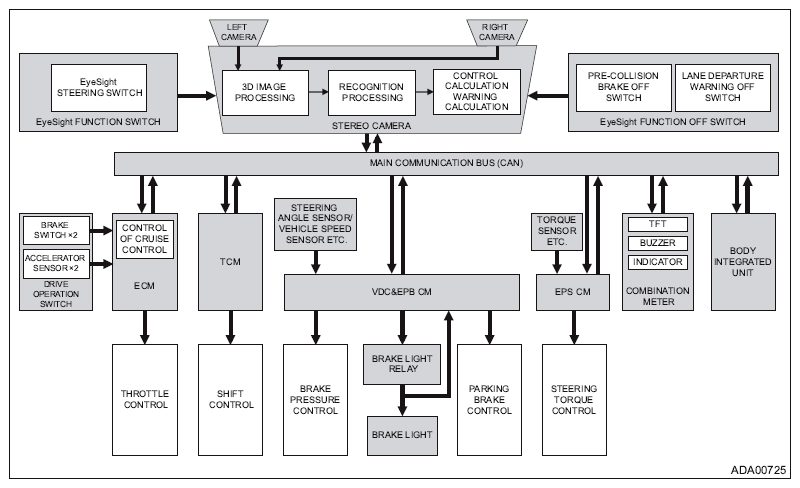

Fig 1: Stereo Camera System Block Diagram
Courtesy of SUBARU OF AMERICA, INC.
