Air Intake Boot: Installation

Install the air intake boot and connect the blow-by hose (D) to the air intake boot.
Tighten the clamp (B) securing the throttle body to the air intake boot.
Tighten the bolt (C) securing the air intake boot to the collector cover bracket.
Tighten the clamp (A) securing the air cleaner case (rear) to the air intake boot.
Tightening torque:

T1: 3 N.m (0.3 kgf-m, 2.2 ft-lb)

T2: 6.5 N.m (0.7 kgf-m, 4.8 ft-lb)

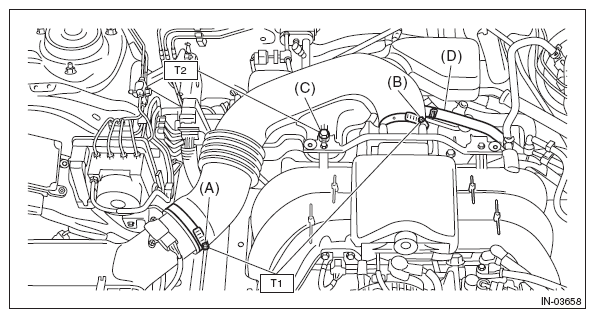

Fig 1: Identifying Blow-By Hose, Clamp And Bolt With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Install the collector cover.
