Subaru
>>
2016
>>
Outback 2.5i
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Continuously Variable Transaxle (CVT) (Diagnostics)
>>
Electrical Component Location
>>
Location
>>
Sensor
Continuously Variable Transaxle (CVT) (Diagnostics): Electrical Component Location: Location: Sensor
ENGINE TYPE FB

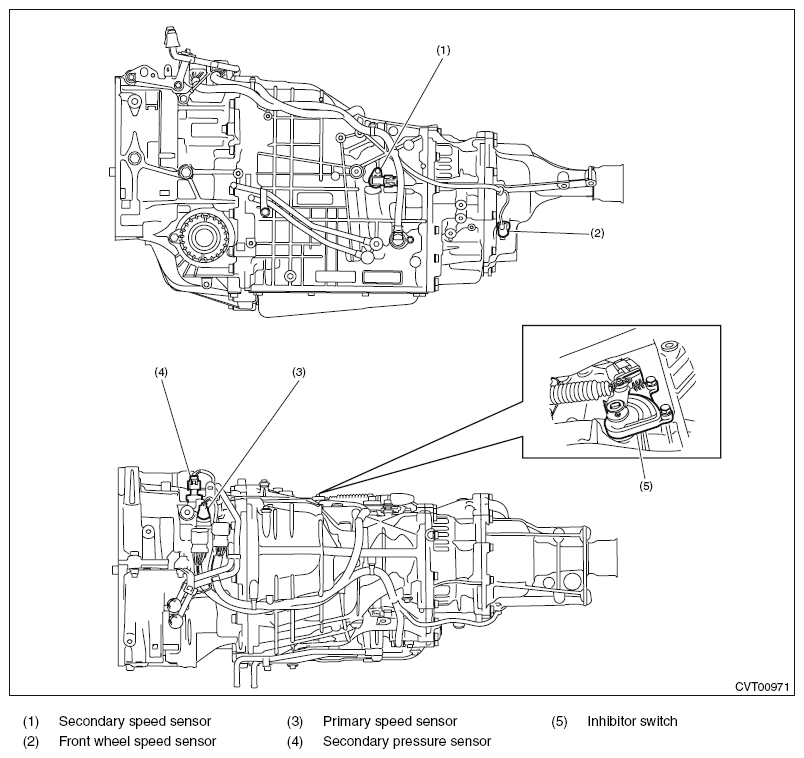

Fig 1: Identifying CVT Sensor - Engine Type FB
Courtesy of SUBARU OF AMERICA, INC.
ENGINE TYPE EZ

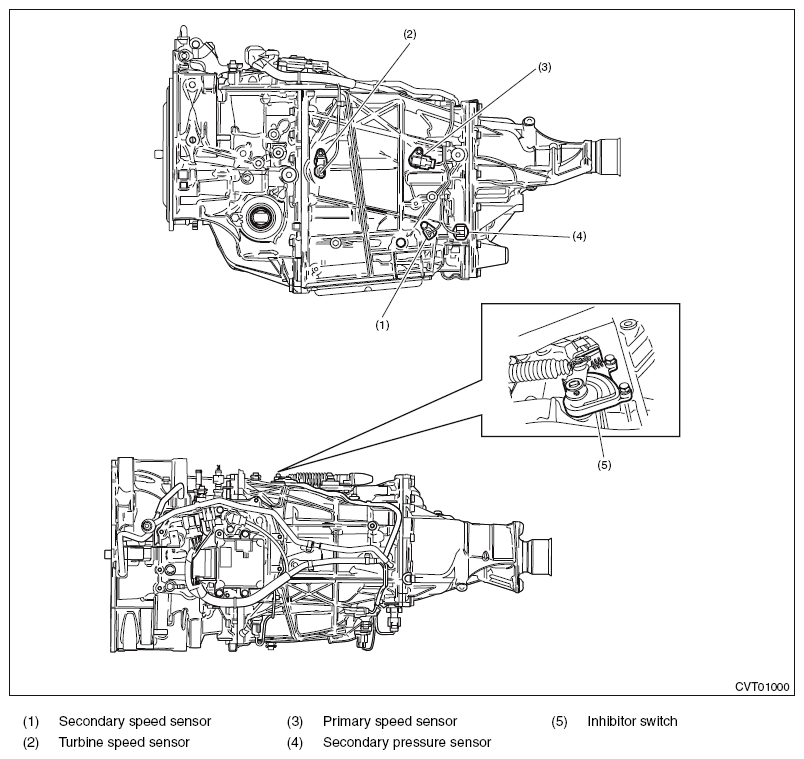

Fig 2: Identifying CVT Sensor - Engine Type EZ
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
