Oil Pump: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Apply engine oil to the O-ring and attach it to the oil pan upper.
    NOTE: Use new O-rings.
    Fig 1: Locating Oil Pan Upper O-Ring
    G10264236Courtesy of SUBARU OF AMERICA, INC.
  2. Apply liquid gasket to the mating surfaces of strainer.

    Liquid gasket:

    THREE BOND 1217G (Part No. K0877Y0100), THREE BOND 1217H or equivalent

    Liquid gasket applying diameter:

    2±1 mm (0.079±0.039 in)

    NOTE:
    • Install within 5 min. after applying liquid gasket.
    • After installing the strainer, remove any liquid gasket that is squeezed out.
    Fig 2: Identifying Liquid Gasket Applying Area On Oil Pump Strainer Mating Surfaces
    G10264238Courtesy of SUBARU OF AMERICA, INC.
  3. Install the strainer to the oil pump.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

  4. Install the stiffener and the oil pump.

    Tightening torque:

    T1: 13 N.m (1.3 kgf-m, 9.6 ft-lb)

    T2: 24 N.m (2.4 kgf-m, 17.7 ft-lb)

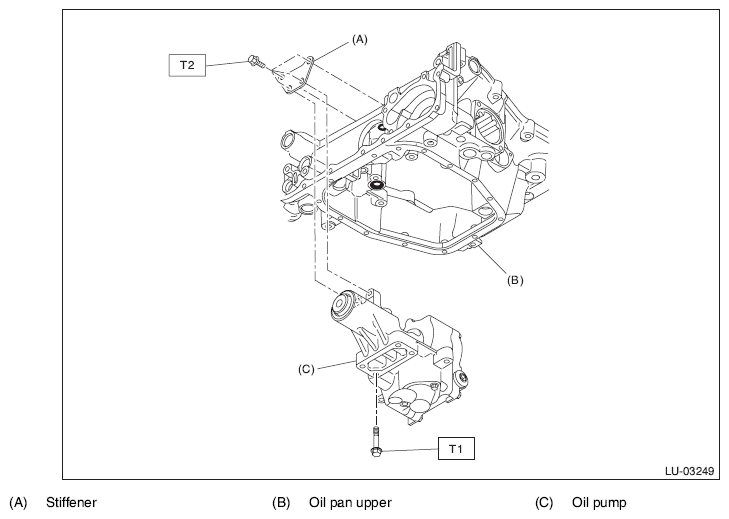

    Fig 3: Identifying Stiffener, Oil Pump And Oil Pan Upper With Bolts
    G10312174Courtesy of SUBARU OF AMERICA, INC.
  5. Install the oil pan lower. < Ref. to INSTALLATION , Oil Pan. >
  6. Install the timing chain assembly. < Ref. to INSTALLATION , Timing Chain Assembly. >
  7. Install the chain cover. < Ref. to INSTALLATION , Chain Cover. >
  8. Connect the ground terminal to battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
  9. Refill the engine oil. < Ref. to REPLACEMENT , Engine Oil. >
  10. Fill the ATF. < Ref. to FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
  11. Install the collector cover.
