Section 3 (Starting System & Charging System (H6DO)): Starter: Installation

WARNING: This page is about a different variant/trim than selected.

Install the starter to the transmission.
NOTE: Tighten the starter and bracket (a) together using the upper bolt securing the starter.

Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)
Connect the connector (A) to the starter, and install the terminal (B).
Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)

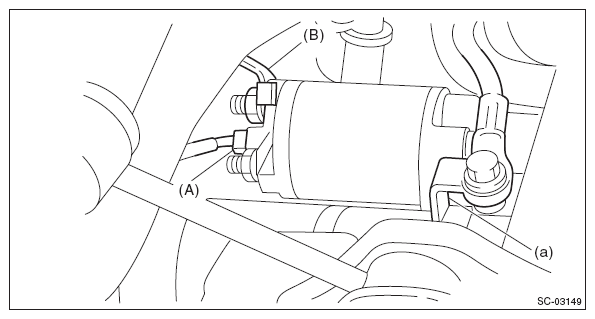

Fig 1: Identifying Starter Connector And Terminal
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot. < Ref. to INSTALLATION , Air Intake Boot. >
Connect the ground terminal to battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
Install the collector cover.
