Components With Torque Specifications: V-Belt

WARNING: This page is about a different variant/trim than selected.

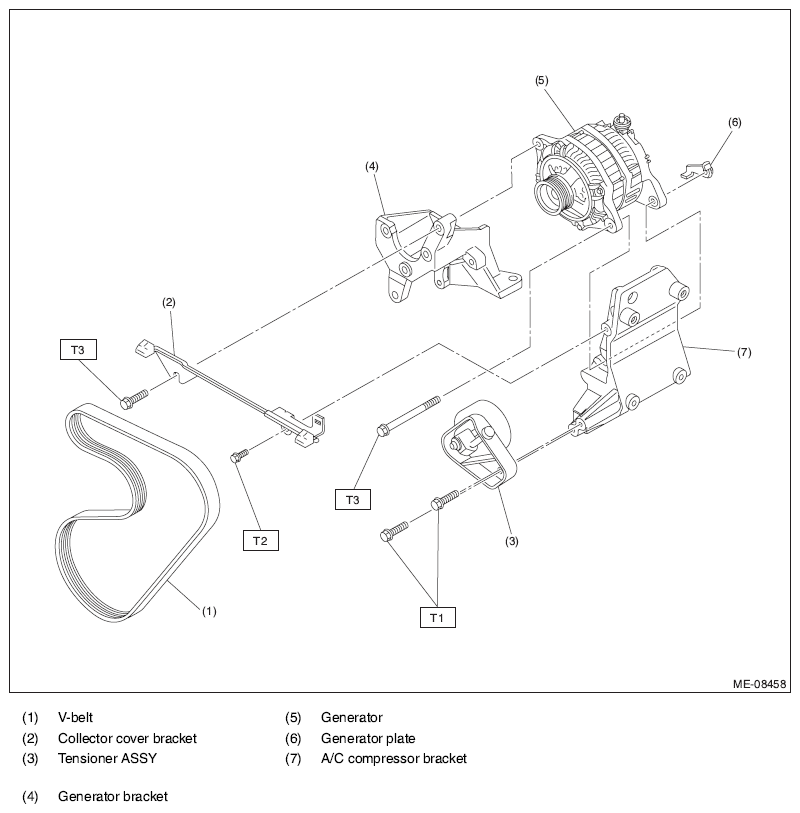

Fig 1: Identifying V-Belt Related Components With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 20 (2.0, 14.8)

T2: < Ref. to INSTALLATION , Generator. >

T3: < Ref. to INSTALLATION , Generator. >
