Chain Cover

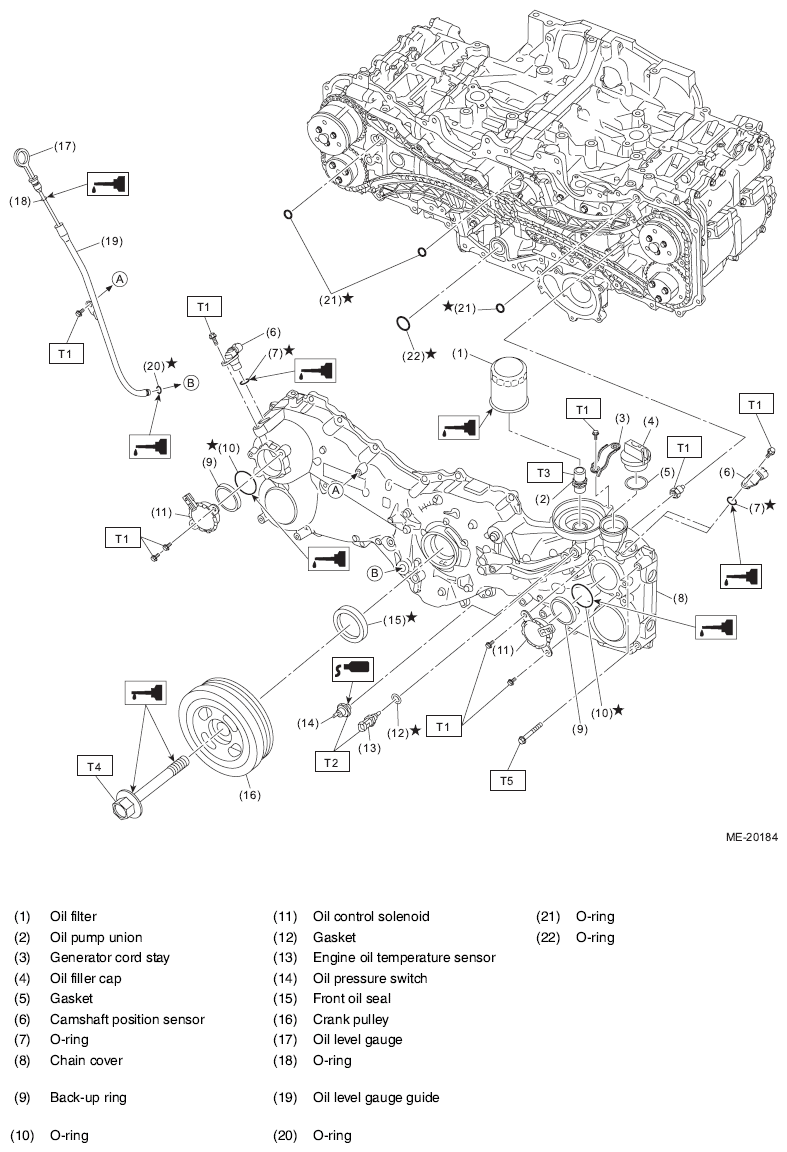

Fig 1: Exploded View Of Chain Cover

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 18 (1.8, 13.3)

T3: 45 (4.6, 33.2)

T4: < Ref. to  INSTALLATION  , Crank Pulley. >

T5: < Ref. to  INSTALLATION  , Chain Cover. >
