Front Mounting Bracket

  1. Remove the radiator fan and fan motor assembly. < Ref. to REMOVAL , Radiator Fan and Fan Motor Assembly. >
  2. Remove the front cushion rubbers. < Ref. to FRONT CUSHION RUBBER AND ENGINE MOUNTING BRACKET , REMOVAL, Engine Mounting. >
  3. Remove the front mounting bracket.

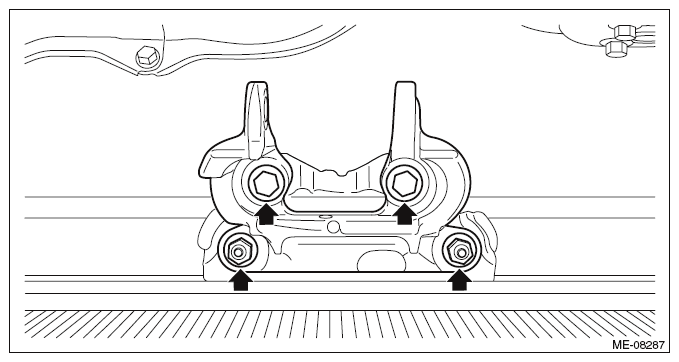

    Fig 1: Locating Front Mounting Bracket Bolts
    G10262562Courtesy of SUBARU OF AMERICA, INC.
