Front Exhaust Pipe: Disassembly

  1. Remove the front oxygen (A/F) sensor and rear oxygen sensor from front exhaust pipe. < Ref. to REMOVAL , Front Oxygen (A/F) Sensor. > < Ref. to REMOVAL , Rear Oxygen Sensor. >
  2. Remove the center exhaust pipe from the front exhaust pipe.
    Fig 1: Locating Center Exhaust Pipe Bolts
    G10262937Courtesy of SUBARU OF AMERICA, INC.
  3. Remove each cover from the front exhaust pipe.

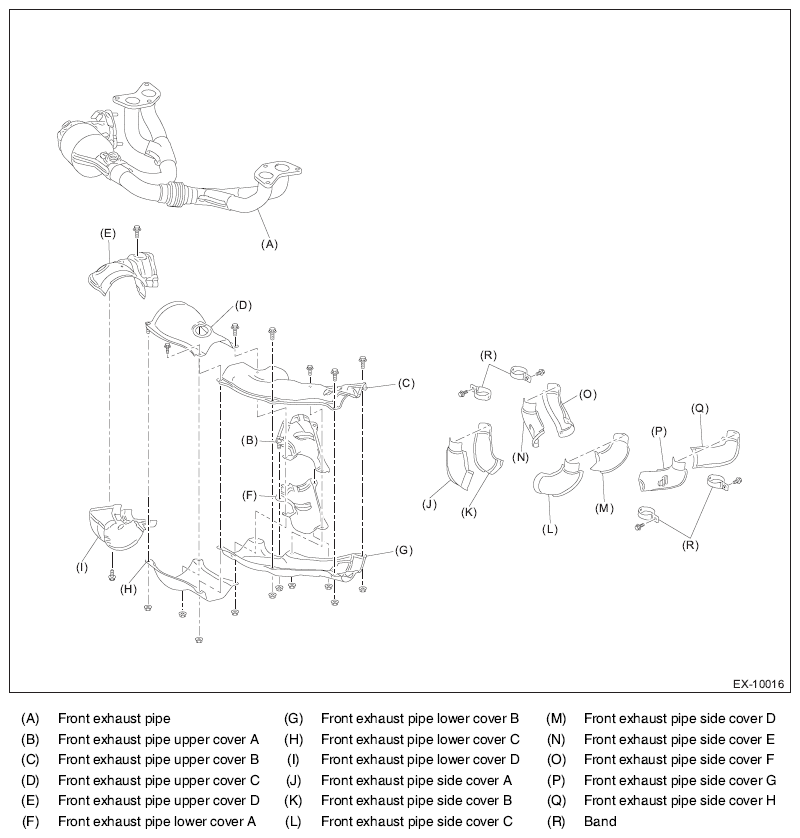

    Fig 2: Exploded View Of Front Exhaust Pipe Cover
    G10308664Courtesy of SUBARU OF AMERICA, INC.
