Reclining Mechanism (Outback Model)

CAUTION: If the hook - rear seat is disconnected from the vehicle body, make sure to replace the hook - rear seat with a new part to prevent the decline of the fixed force of the seat.

Fig 1: Identifying Hook - Rear Seat

Courtesy of SUBARU OF AMERICA, INC.

Install the striker - backrest rear.
Tightening torque:

33 N.m (3.4 kgf-m, 24.3 ft-lb)
Install the trim panel - rear apron.
Install the lever assembly - reclining.

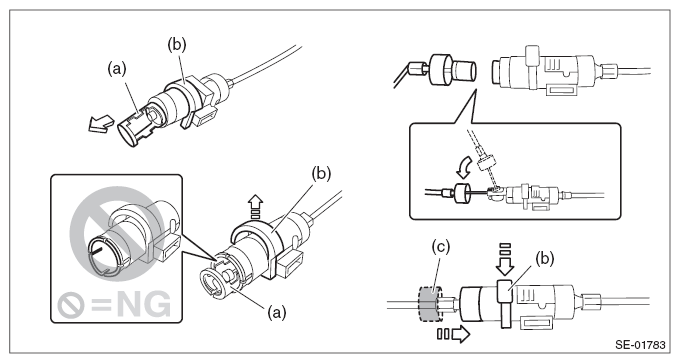

1. Connect the reclining cable.
1. With the lock (b) down, pull out the connecting portion (a).
2. With the connecting portion (a) pulled out, pull up the lock (b).
  NOTE: The connection cannot be completed, even if the lock (b) is pulled up while the connecting portion (a) is in the case.
3. Connect the cables, attach the case (c), and push down the lock (b).

  Fig 2: Caution For Pull Out Connecting Portion
  Courtesy of SUBARU OF AMERICA, INC.
Install the side pad assembly - backrest.
Tightening torque:

53 N.m (5.4 kgf-m, 39.1 ft-lb)
Install the rear seat cushion.
Connect the ground terminal to battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
