Front Seat

• Manual seat - driver's seat

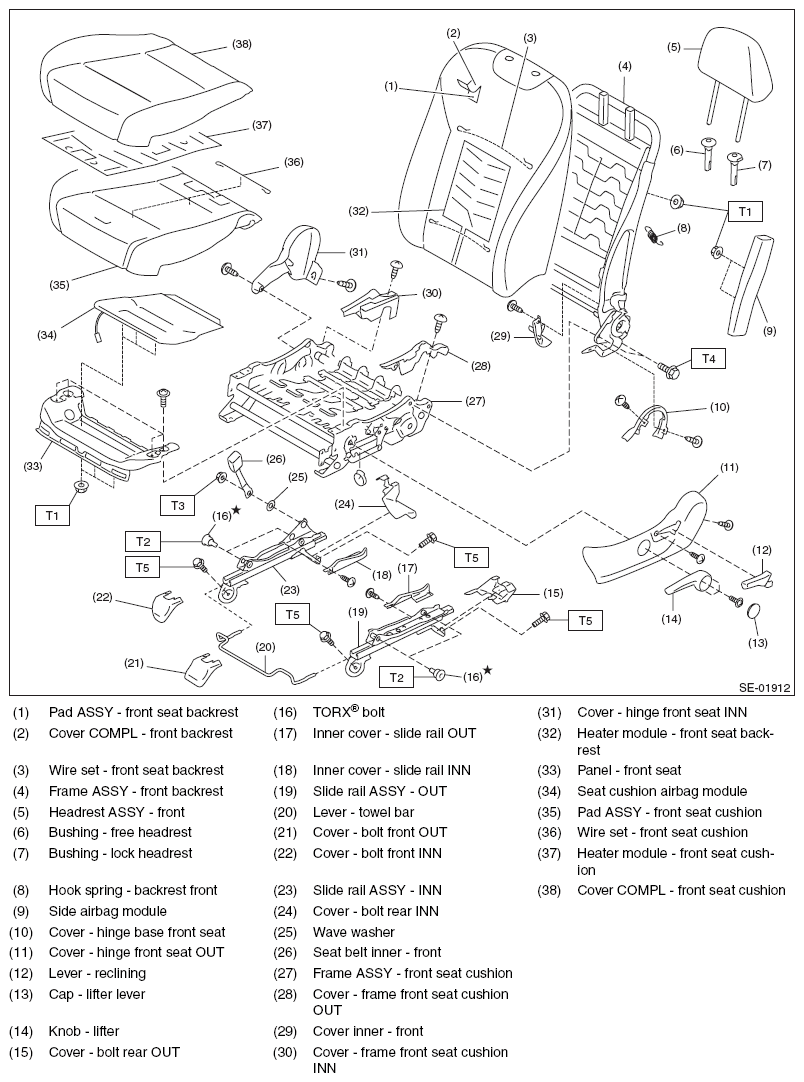

  Fig 1: Exploded View Of Front Seat (Driver Manual Seat)

  Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 15 (1.5, 11.1)

T3: 38 (3.9, 28.0)

T4: 52 (5.3, 38.4)

T5: 53 (5.4, 39.1)

• Manual seat - passenger's seat

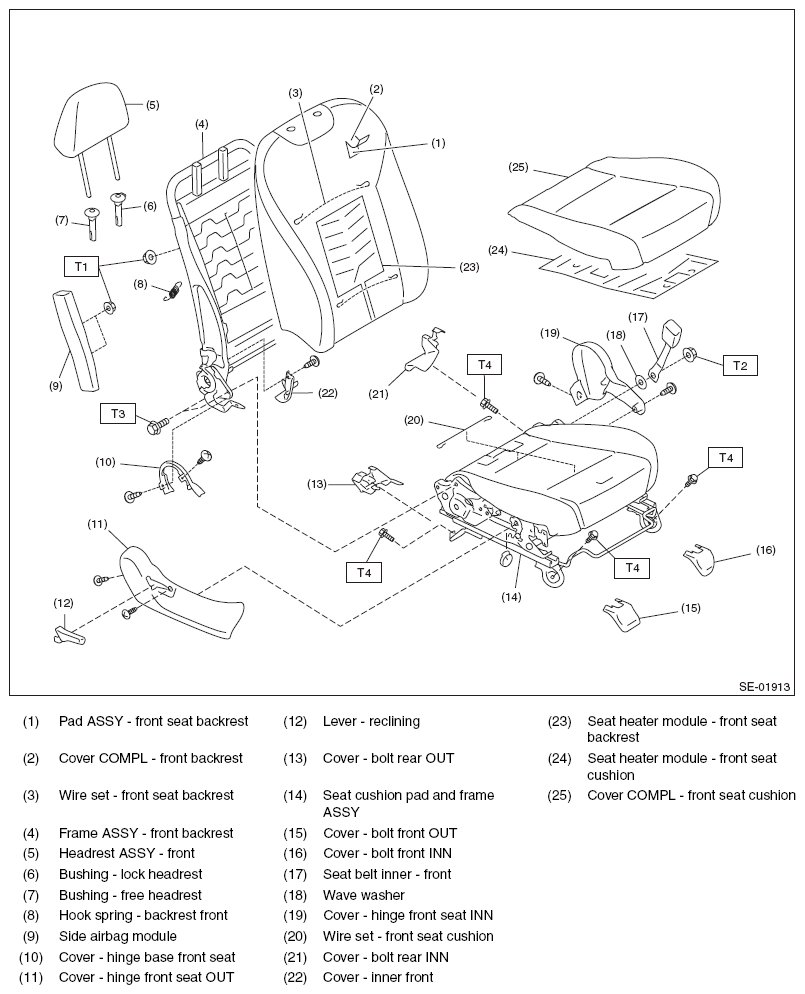

  Fig 2: Exploded View Of Front Seat (Passenger Manual Seat)

  Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 38 (3.9, 28.0)

T3: 52 (5.3, 38.4)

T4: 53 (5.4, 39.1)

• Power seat - driver's seat

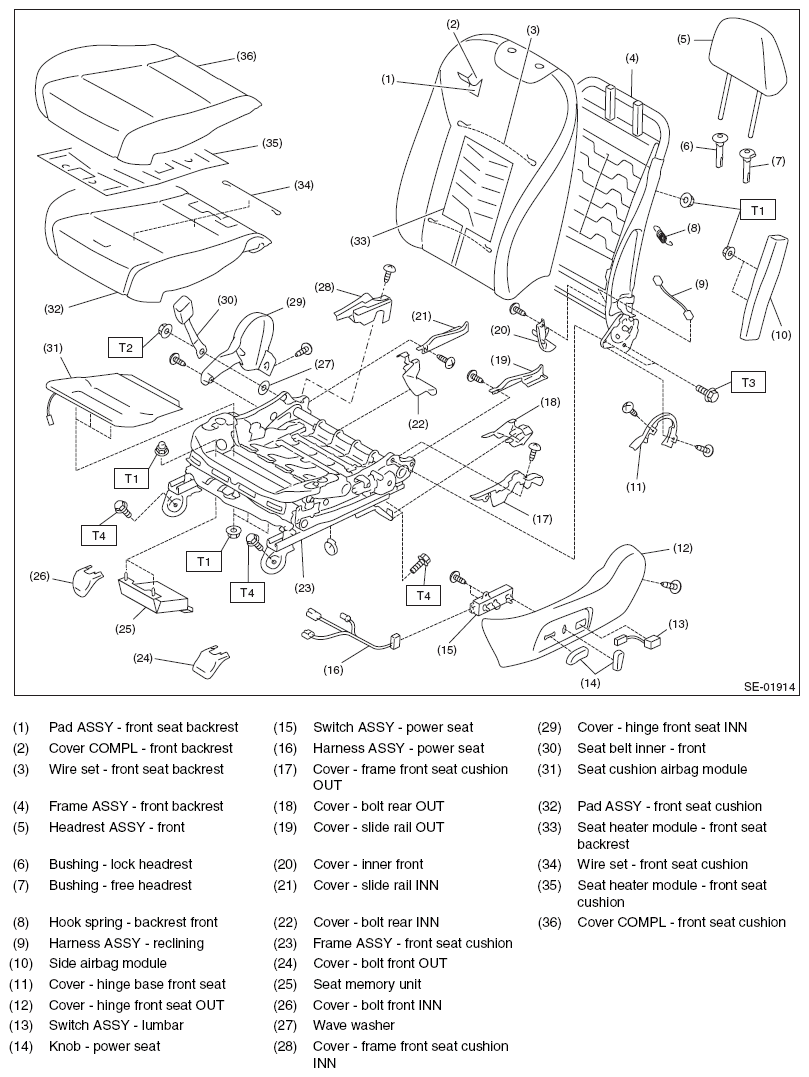

  Fig 3: Exploded View Of Front Seat (Driver Power Seat)

  Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 38 (3.9, 28.0)

T3: 52 (5.3, 38.4)

T4: 53 (5.4, 39.1)

• Power seat - passenger's seat

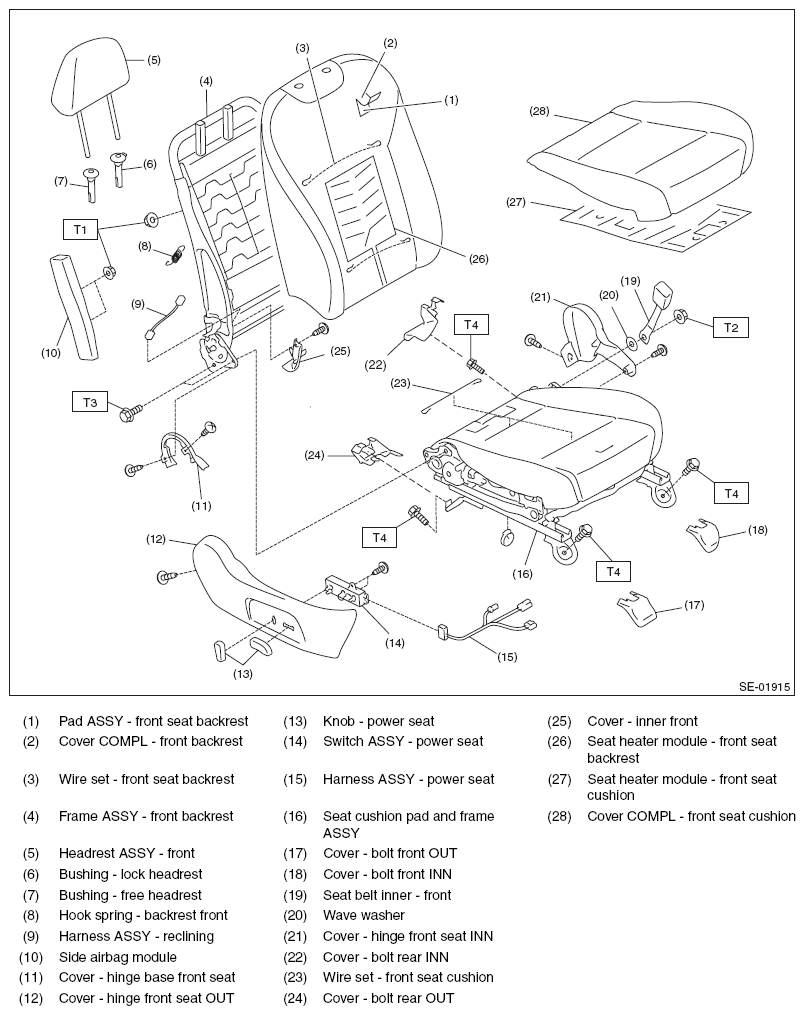

  Fig 4: Exploded View Of Front Seat (Passenger Power Seat)

  Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 38 (3.9, 28.0)

T3: 52 (5.3, 38.4)

T4: 53 (5.4, 39.1)
