Transmission Control Module (TCM): Installation

Install the TCM.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Fig 1: Identifying Transfer Control Module
Courtesy of SUBARU OF AMERICA, INC.
Install the harness connector to TCM.
NOTE: Move the lock lever in the arrow direction, and confirm that a clicking sound is heard.

Fig 2: Moving Lock Lever
Courtesy of SUBARU OF AMERICA, INC.
Insert the transmission case cover (small) between transmission case cover (large) and transmission to install.
NOTE: When inserting, be careful that the insulator inside transmission case cover is not turned over.

Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Fig 3: Locating Transmission Case Cover Insulator
Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Locating Transmission Case Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the harness clip, and connect the following transmission radio ground terminal and transmission harness connector.
Tightening torque:

13 N.m (1.3 kgf-m, 9.6 ft-lb)

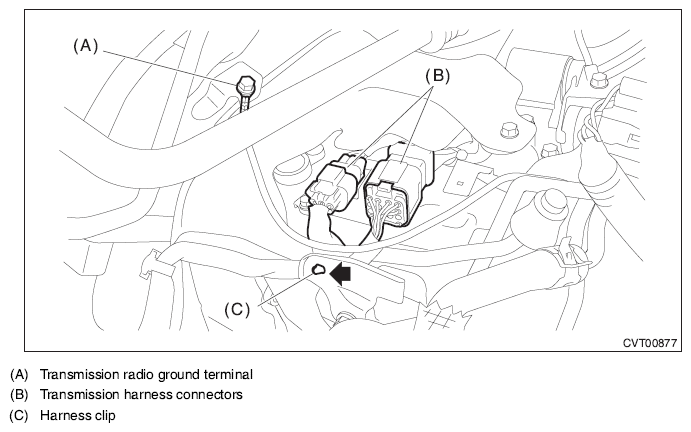

Fig 5: Identifying Transmission Radio Ground Terminal And Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot assembly. < Ref. to INSTALLATION , Air Intake Boot. >
Connect the ground terminal to battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
Perform the operation of AT learning mode. < Ref. to LEARNING CONTROL . >
