Oil Pressure Switch: Installation

WARNING: This page is about a different variant/trim than selected.

Apply liquid gasket to the oil pressure switch threads.
Liquid gasket:

THREE BOND 1324 (Part No. 004403042) or equivalent

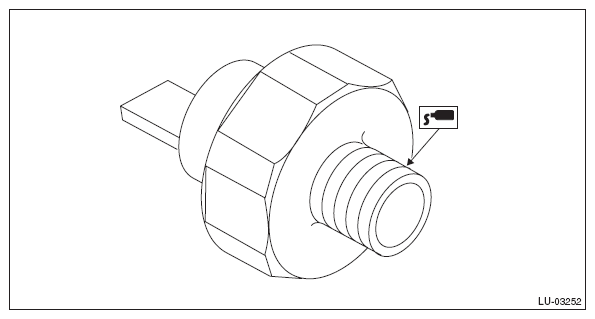

Fig 1: Identifying Liquid Gasket Applying Area On Oil Pressure Switch Threads
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pressure switch to the oil pan upper.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)
Connect the terminal to the oil pressure switch.
Install the under cover. < Ref. to INSTALLATION , Front Under Cover. >
Lower the vehicle.
Connect the ground terminal to battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
Refill the engine oil. < Ref. to REPLACEMENT , Engine Oil. >
