Transfer Clutch: Disassembly

Remove the snap ring, and then remove the retaining plate, drive plate and driven plate.

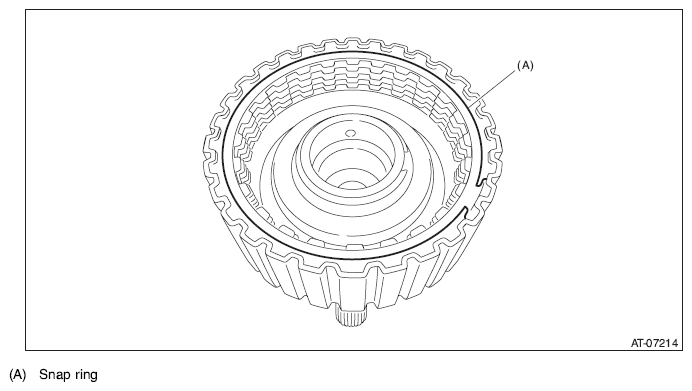

Fig 1: Identifying Retaining Plate Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Compress the return spring using the ST to remove the snap ring.
ST 18762AA001 COMPRESSOR SPECIAL TOOL

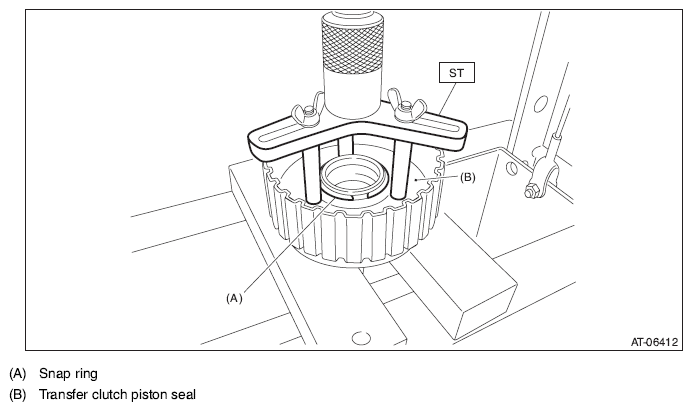

Fig 2: Compressing Return Spring Using ST
Courtesy of SUBARU OF AMERICA, INC.
Remove the transfer clutch piston seal.
Remove the return spring.

Fig 3: Removing Transfer Clutch Piston Seal
Courtesy of SUBARU OF AMERICA, INC.
Remove the transfer clutch piston by blowing compressed air through transfer clutch assembly hole.
NOTE: Plug the holes through which the compressed air is not blown.

Fig 4: Locating Transfer Clutch Piston Plug Hole
Courtesy of SUBARU OF AMERICA, INC.
Remove the ball bearing using ST.
ST1 18767AA010 BEARING REMOVER

ST2 18723AA000 REMOVER

Fig 5: Removing Ball Bearing Using Bearing Remover (ST1 18767AA010)
Courtesy of SUBARU OF AMERICA, INC.
