Rear Seat

• Sedan model

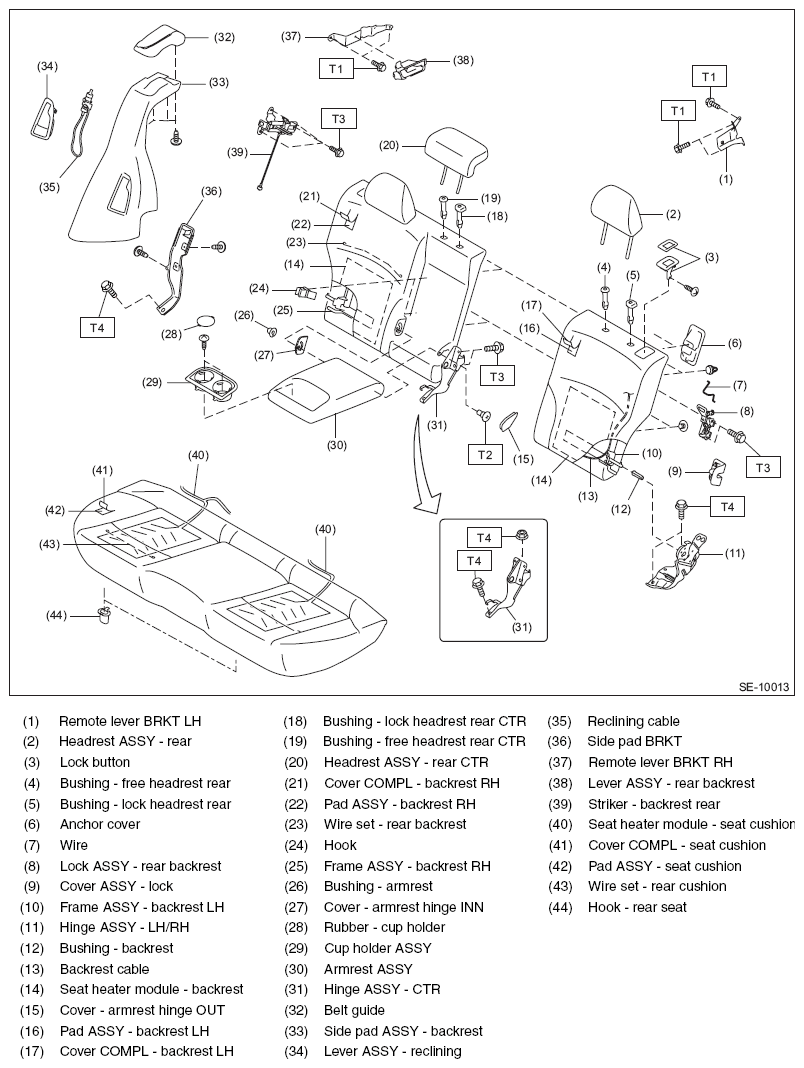

  Fig 1: Exploded View Of Rear Seat (Sedan Model)

  Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 9.8 (1.0, 7.2)

T3: 24.5 (2.5, 18.1)

T4: 53 (5.4, 39.1)

• OUTBACK model

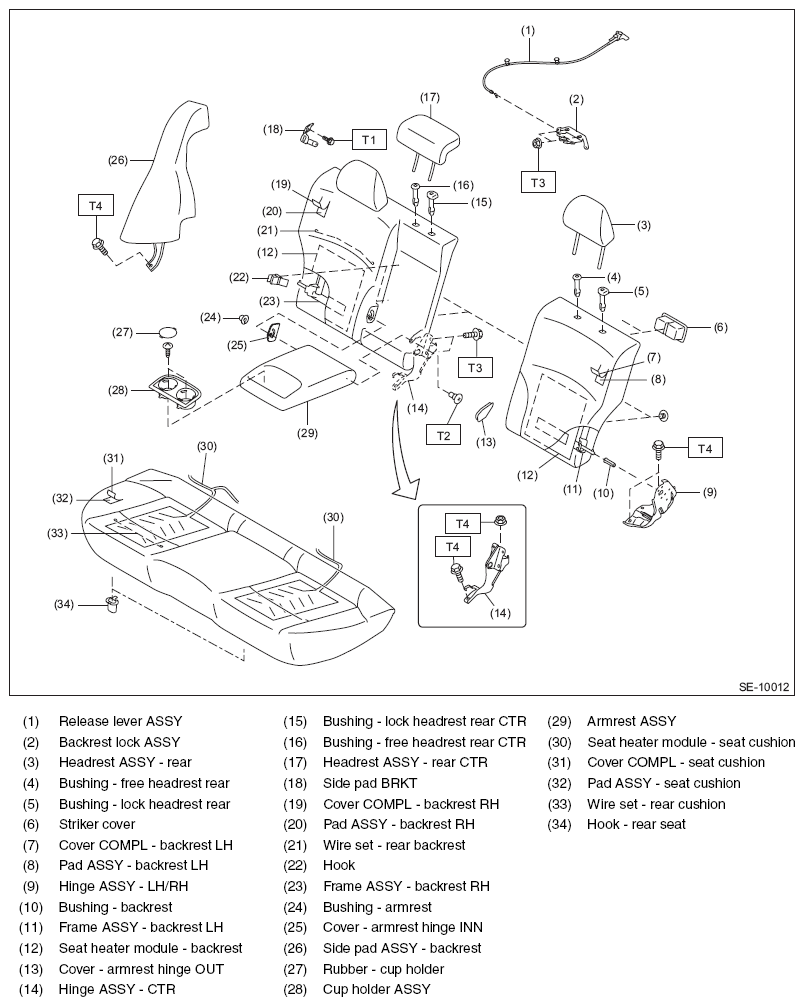

  Fig 2: Exploded View Of Rear Seat (Outback Model)

  Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 24.5 (2.5, 18.1)

T3: 33 (3.4, 24.3)

T4: 53 (5.4, 39.1)
