Solenoid Unit

Remove the select lever with the select cable connected. < Ref. to REMOVAL , Select Lever. >
Remove the spacer and gasket. < Ref. to REMOVAL , Select Lever. >
Remove the harness connector from the select lever COMPL.

Fig 1: Identifying Select Lever COMPL Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness from the select lever COMPL.

Fig 2: Identifying Select Lever COMPL Harness
Courtesy of SUBARU OF AMERICA, INC.

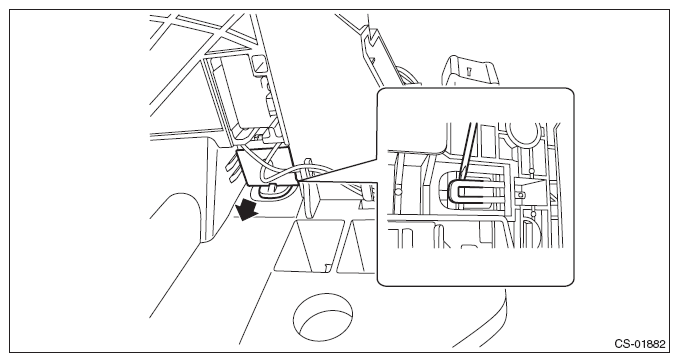

Raise the claw using a flat tip screwdriver with a thin tip, and remove the solenoid unit from the select lever COMPL.

Fig 3: Removing Solenoid Unit From Select Lever COMPL
Courtesy of SUBARU OF AMERICA, INC.

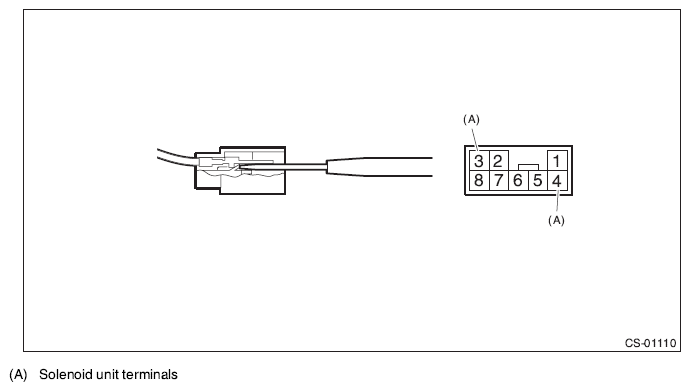

Remove the terminal of the solenoid unit using a flat tip precision screwdriver with a tip width of 1.3 mm (0.05 in) or less, KTC connector terminal tool ECC-1T or equivalent.
