Bushing Front - Front Arm

Put an alignment mark on the front arm assembly based on the split portion of the bushing intermediate plate of the busing front - front arm.
CAUTION: Always put an alignment mark for aligning the position on bushing installation.

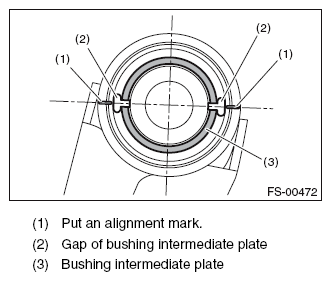

Fig 1: Checking Gap Of Bushing Intermediate Plate
Courtesy of SUBARU OF AMERICA, INC.
Using the ST and a press, remove the front bushing.
Preparation tool:

ST: INSTALLER & REMOVER SET (927680000)

Fig 2: Removing Front Bushing
Courtesy of SUBARU OF AMERICA, INC.
