Vehicle Dynamics Control (VDC) System (Diagnostics): Electrical Component Location: Location

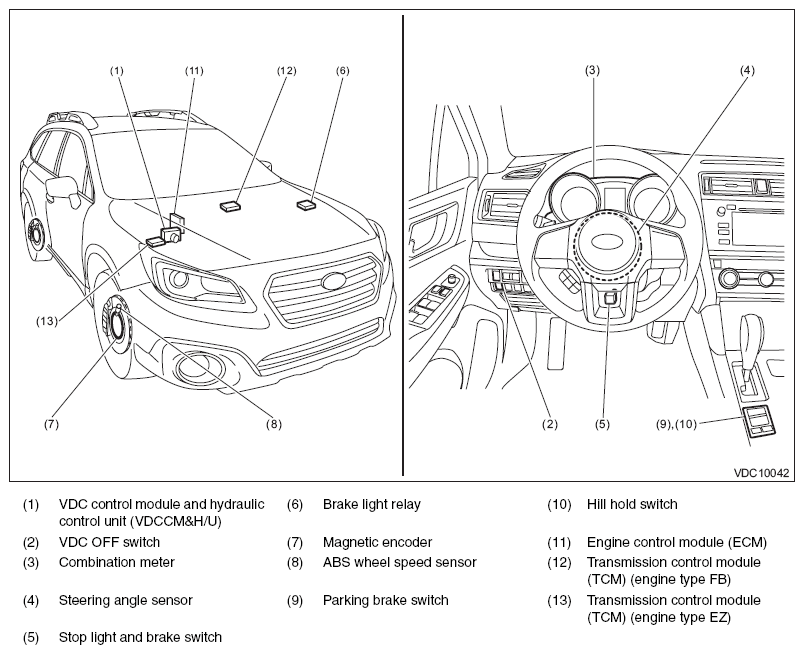

Fig 1: Identifying Vehicle Dynamics Control System Electrical Component Location (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

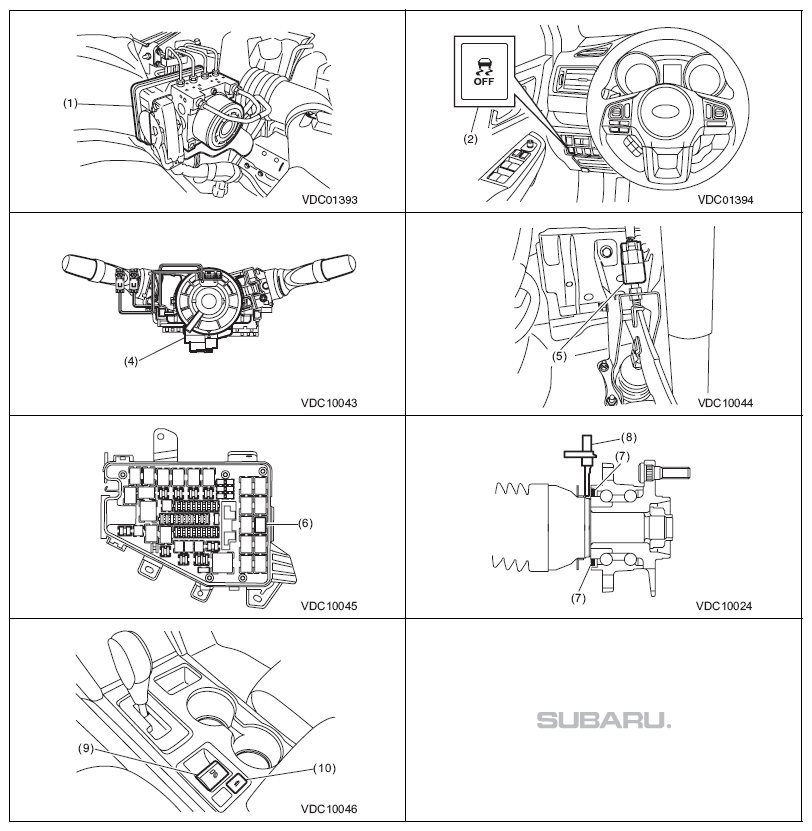

Fig 2: Identifying Vehicle Dynamics Control System Electrical Component Location (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

1. (3) Combination meter

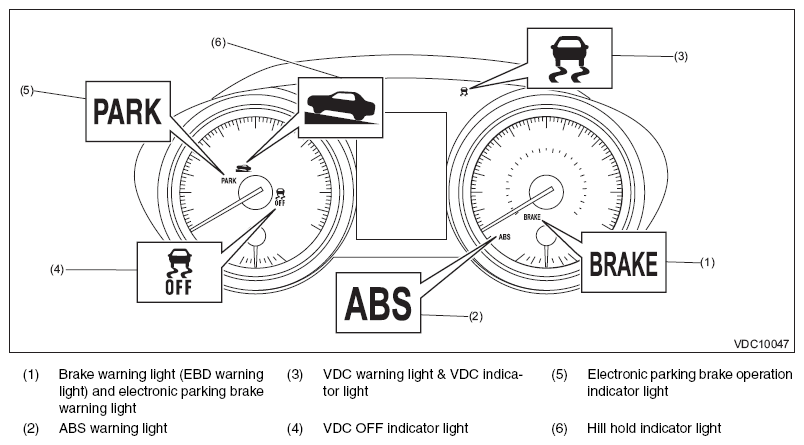

   Fig 3: Identifying Combination Meter Lights

   Courtesy of SUBARU OF AMERICA, INC.
