Operating Cylinder: Removal

CAUTION: Brake fluid spilled on the vehicle body will harm the paint surface; therefore, wash it off with water and wipe clean quickly if spilled.

Remove the clip (A) from the air intake boot.
Loosen the clamp (B) connecting the air intake boot and air cleaner case (rear).
Loosen the clamp (C) which connects the air intake boot and throttle body.

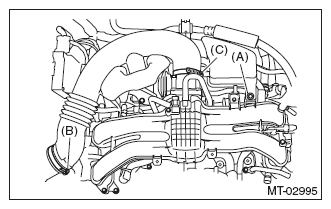

Fig 1: Identifying Air Intake Boot Clip And Clamps
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot from the throttle body, and move it to the left side wheel apron.

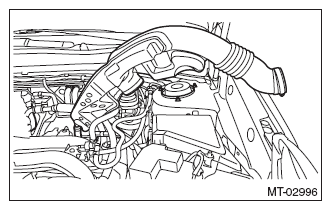

Fig 2: Identifying Throttle Body Air Intake Boot
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the clutch hose.
CAUTION: Cover the hose joint to prevent the brake fluid from flowing out.

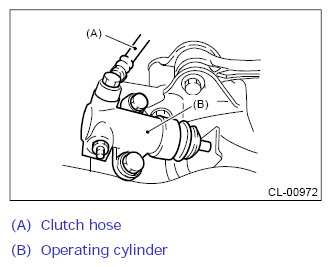

Fig 3: Identifying Clutch Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the operating cylinder.

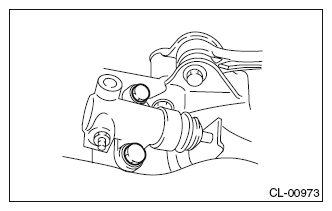

Fig 4: Identifying Operating Cylinder

Courtesy of SUBARU OF AMERICA, INC.
