Master Cylinder: Disassembly

  1. Remove the straight pin and nipple.

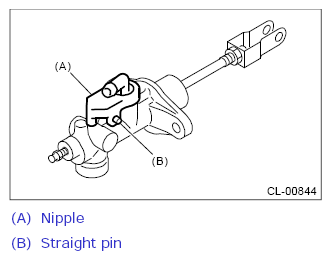

    Fig 1: Identifying Straight Pin And Nipple
    G10407663Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the oil seal.

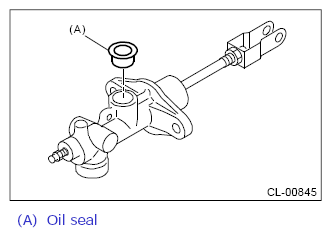

    Fig 2: Identifying Oil Seal
    G10407664Courtesy of SUBARU OF AMERICA, INC.
  3. Move the seat towards the rear.

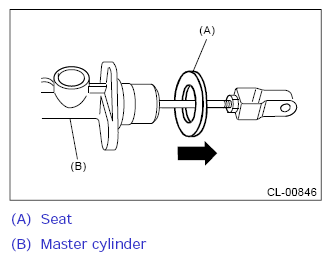

    Fig 3: Rotating Seat Towards Rear
    G10407665Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the piston stop ring.
    CAUTION: When removing the piston stop ring, be careful to prevent the rod, washer, piston and return spring from popping out.
